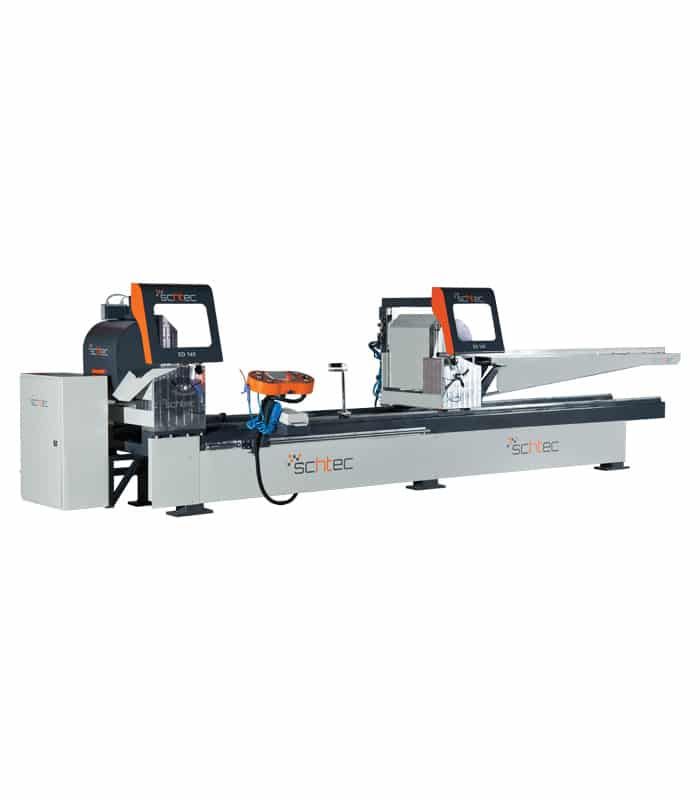

SD 140 Automatyczna Dwugłowa Maszyna Do Cięcia PVC I Aluminium

Standardowe Wyposażenie

• High precision cutting of PVC and Aluminium profiles

• Solidna konstrukcja, system prowadnic liniowych oraz łożysk ślizgowych zapewniające precyzyjną długość i kąt cięcia.

• The saw heads tilt automatically for 45° and 90° cutting and easy manual fixation for Intermediate angles

• Two pieces of 80mm. dropper sash profiles can be cut by means of 500 mm saw blade in the same time

• Easily adjustable blade cutting speed

• Data transfer via local network connection or USB port

• Profile support system to balance of the work piece

• Ergonomic design for ease of use

• Self-closing protective hoods for work safety

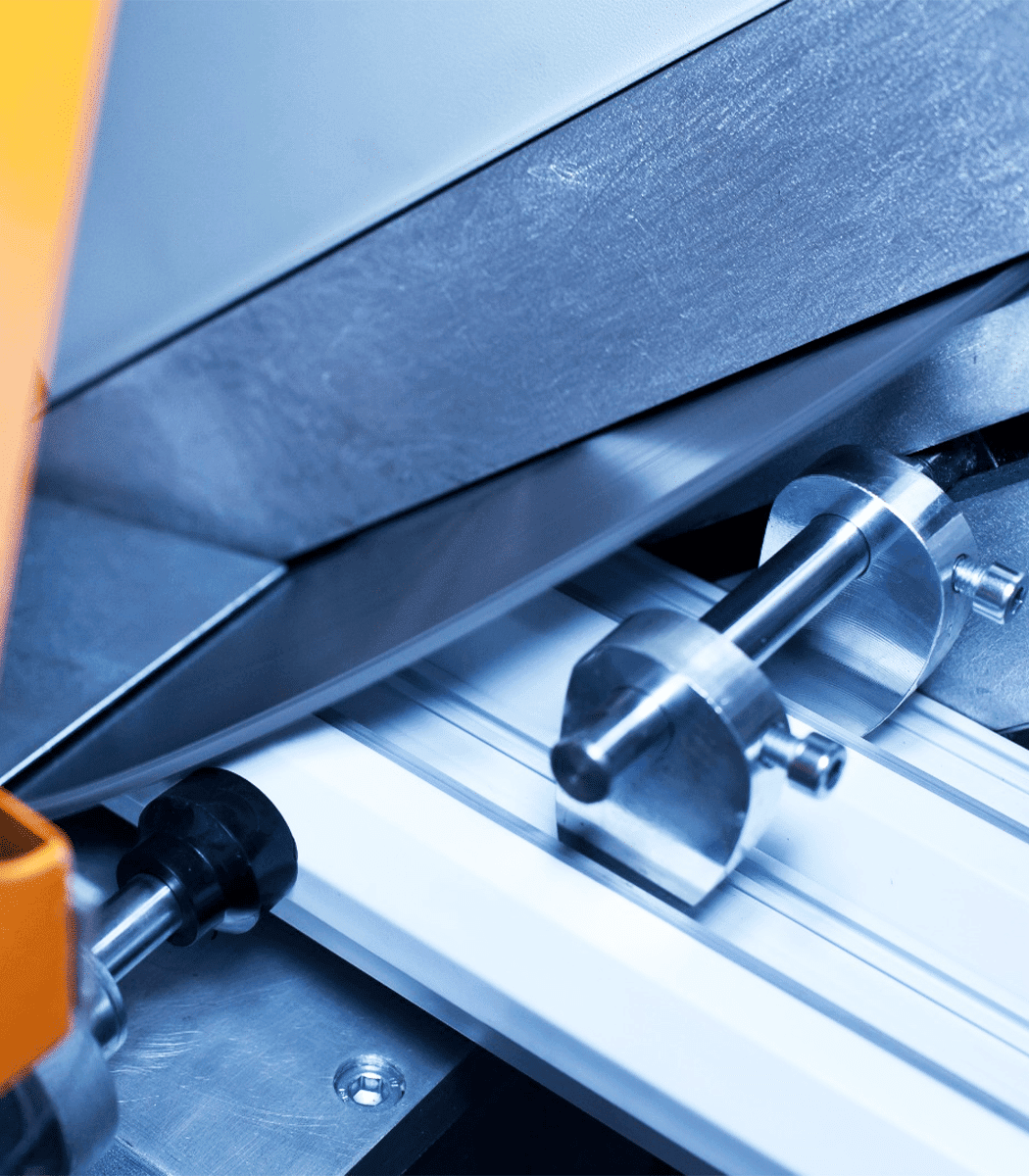

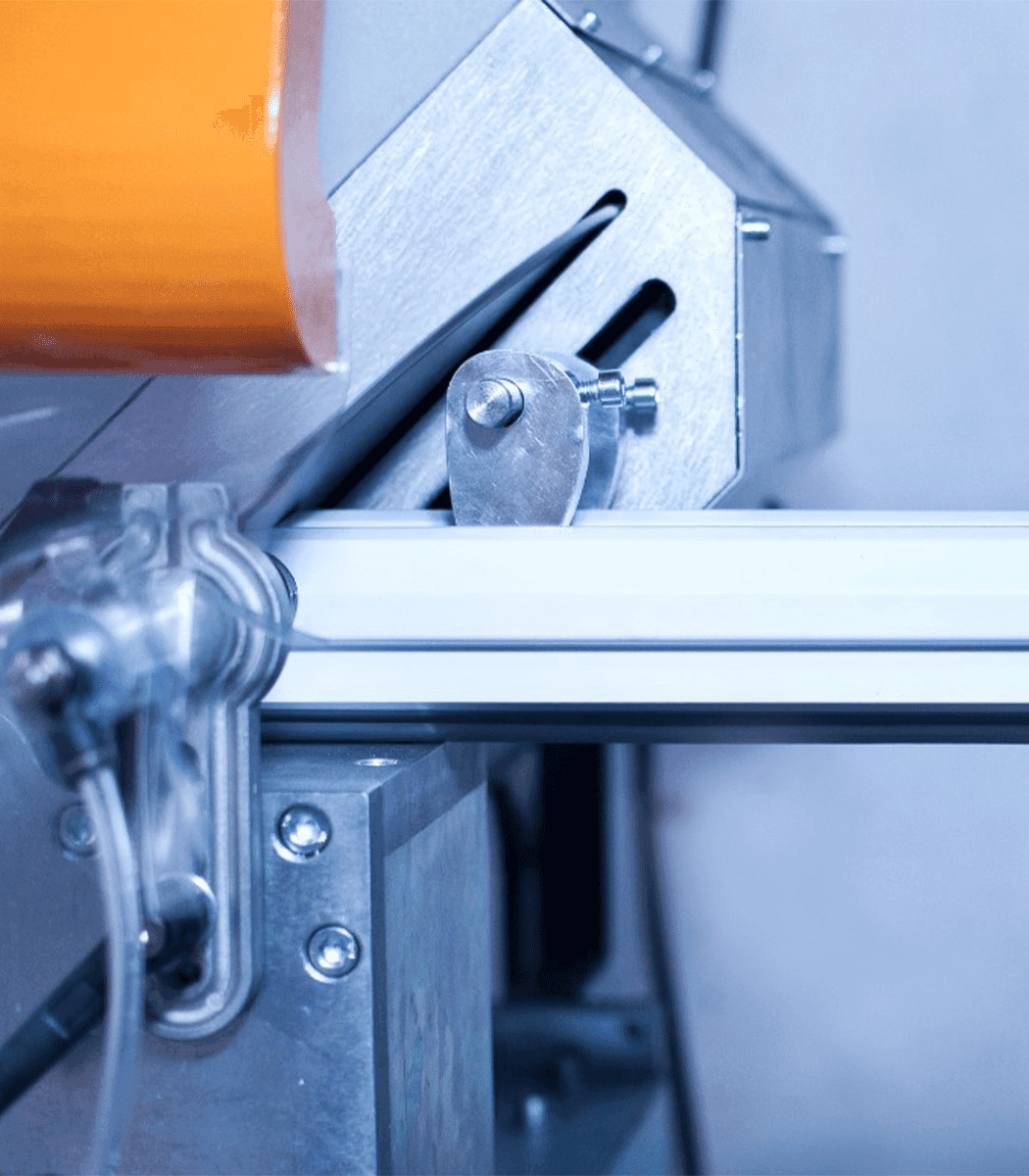

• Vertical and horizontal pneumatic profile clamping system for the best fixation

• The left head of the machine is fixed and the right head moves on the chassis

Opcjonalne Wyposażenie

• System drukarki kodów kreskowych (LS 930)

• System chłodzenia do cięcia profili aluminiowych (GC 265) oraz system hydropneumatyczny (LS 940)

• Automatyczny system cięcia klinów aluminiowych (AF 942)

Opis Produktu

The SCHTEC SD 140 is a versatile automatic double-head machine developed for the precise cutting of PVC and aluminum profiles. Its 500 mm saw blade enables simultaneous cutting of double-wing profiles with 80 mm drip edges. Featuring a linear rail system, a rigid frame, and horizontal-vertical pressure pistons, it delivers smooth and long-lasting operations. It supports fixed angles between 45° and 90° as well as manual intermediate angles. With a secure structure and 8.5 kW motor power, the SD 140 ensures maximum control and efficiency in production processes.
