SVMC 120 Profile Processing & V-Type Cutting Center

Standard Features

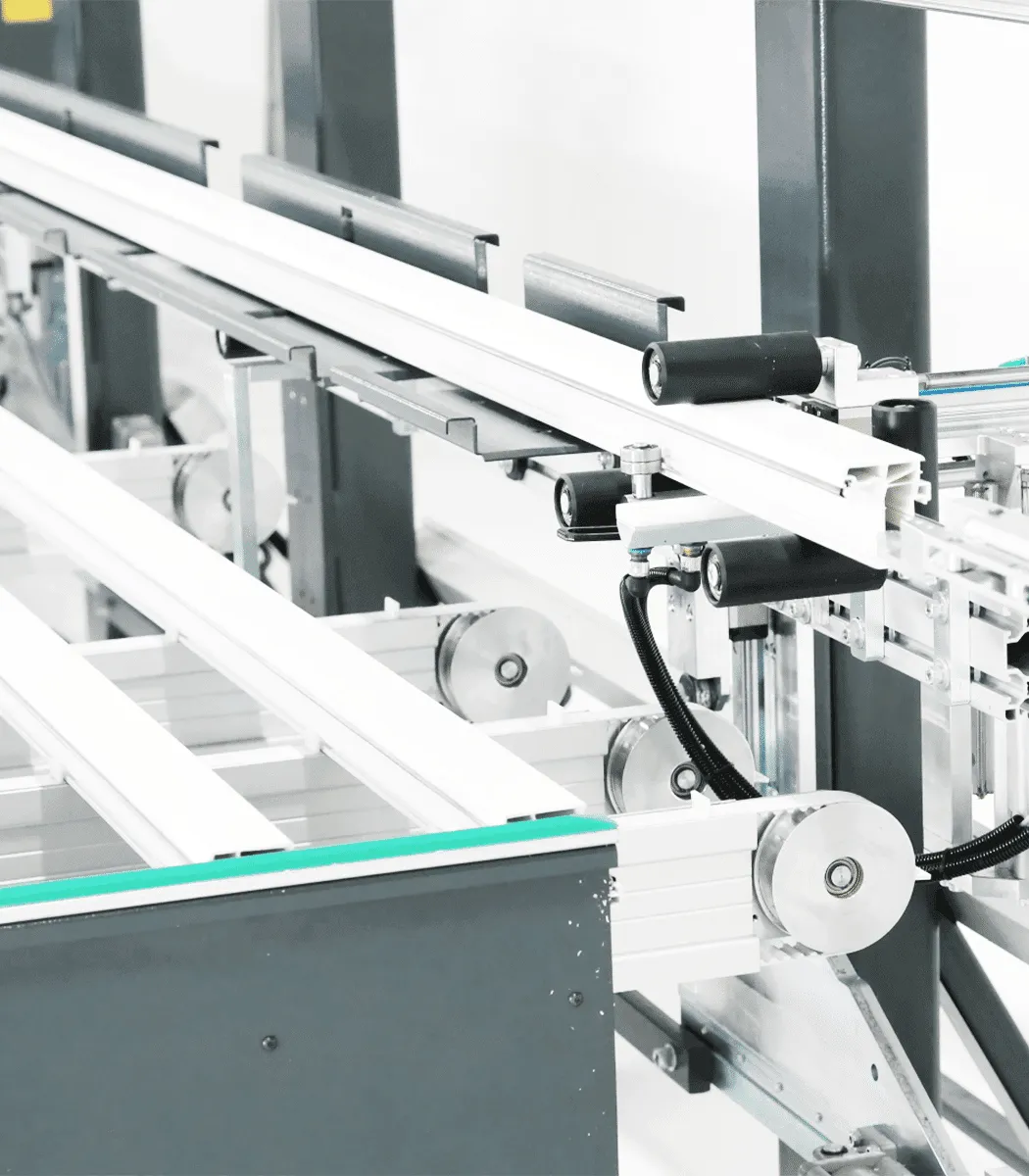

• The infeed magazine can load up to 11 profiles, with a maximum length of 6.5 meters.

• Simultaneous optimization on the machine allows it to self-optimize leftover profiles, switchable between FDS control and machine control.

• Height and width detection ensures that the correct profile is loaded.

• The newly designed loading station enables simultaneous profile loading, increasing the efficiency of profile changeovers.

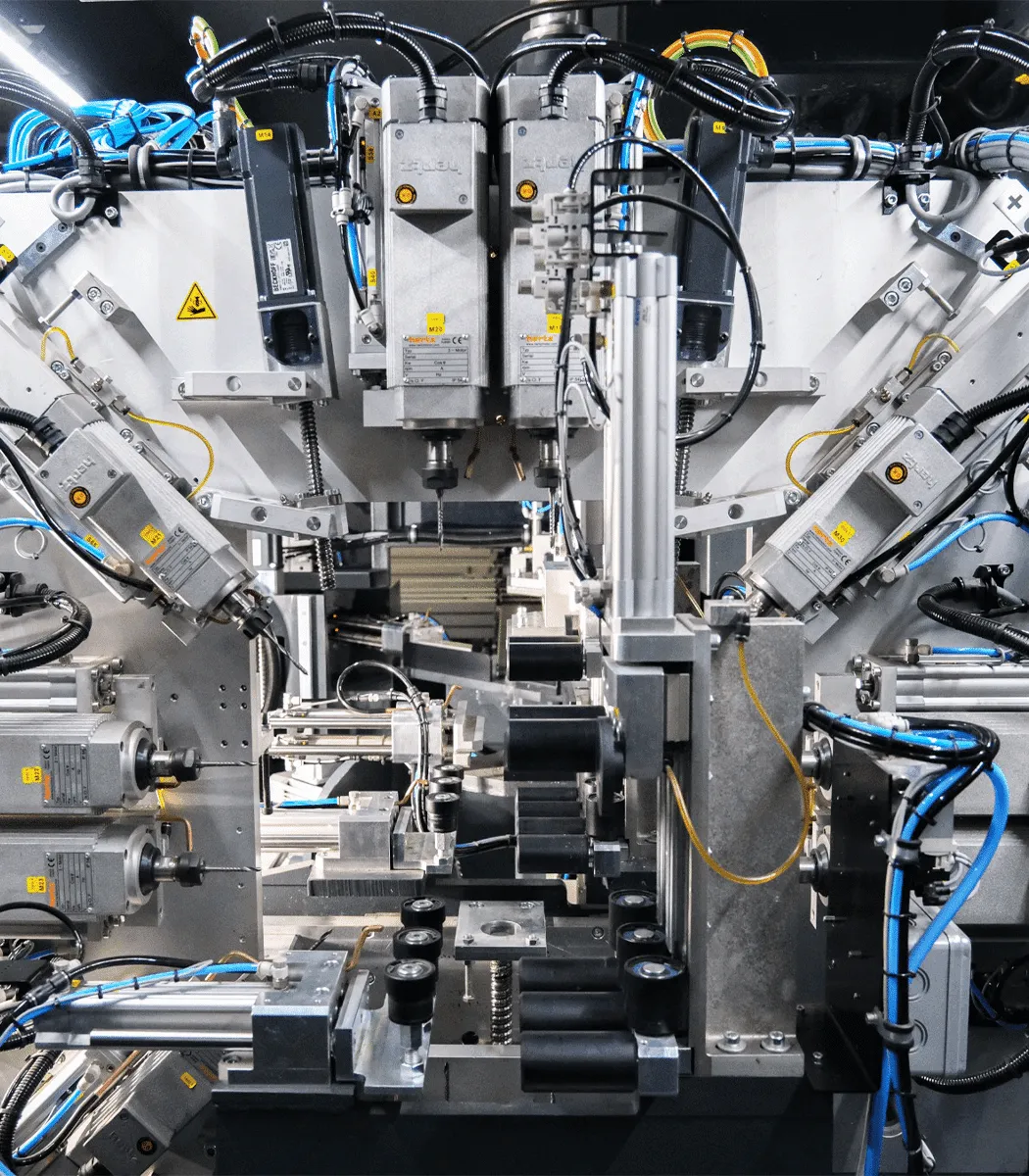

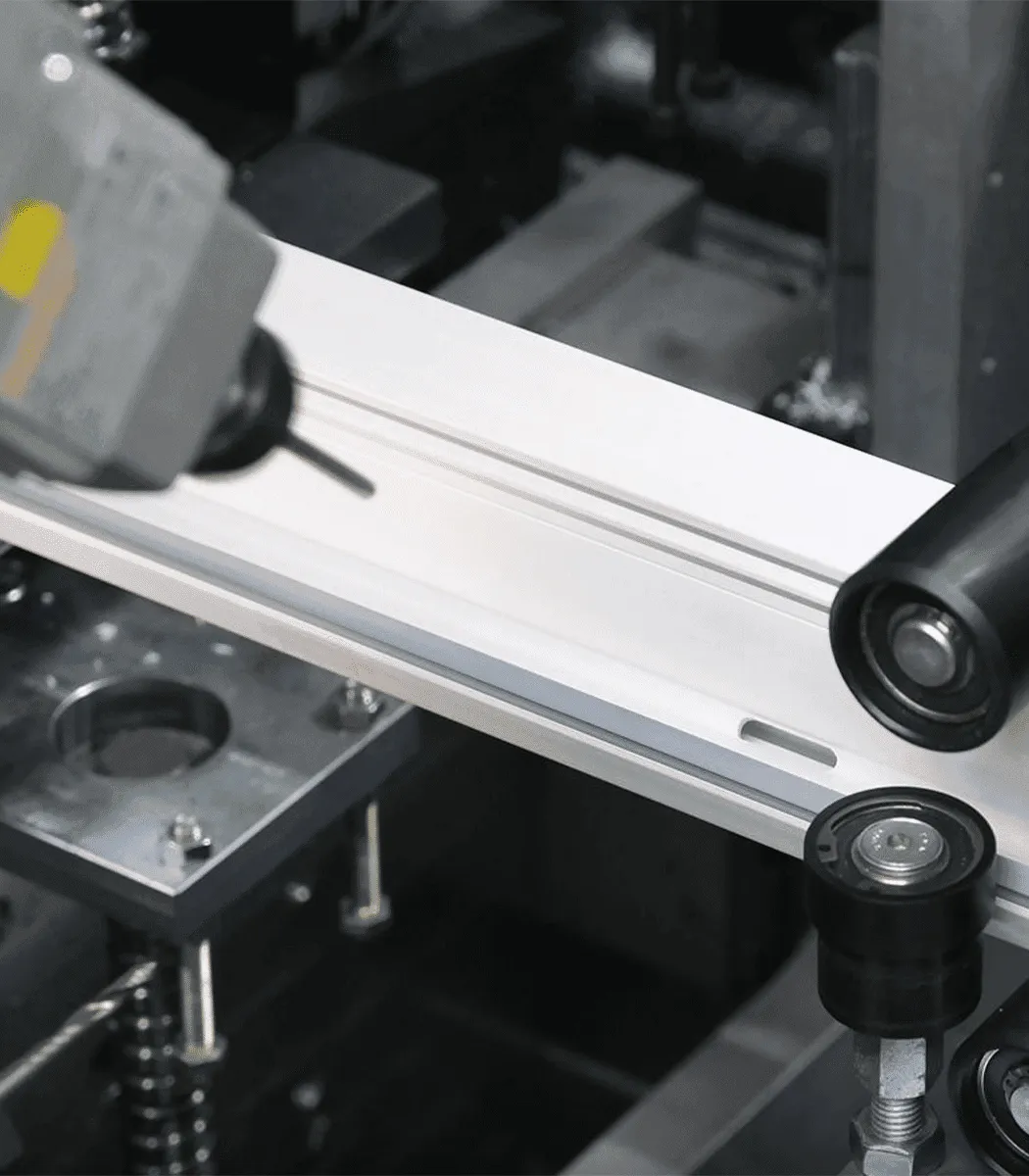

• The four-axis routing portal includes 11 high-speed routing motors using 5mm and 8mm cutters at 0°, 90°, 180°, and 270°, plus three servo-driven angle routers with 5mm cutters for various profile suites with different drainage angles.

• This setup allows the SVMC 120 to complete all preparations on PVC profiles, such as drainage, spot marking, euro-cylinder holes, night vents, hinge holes, handle holes, and euro groove routing.

• Highly efficient simultaneous routing operations on the four-axis portal allow machining from both the top and bottom for components like door handles and night vents.

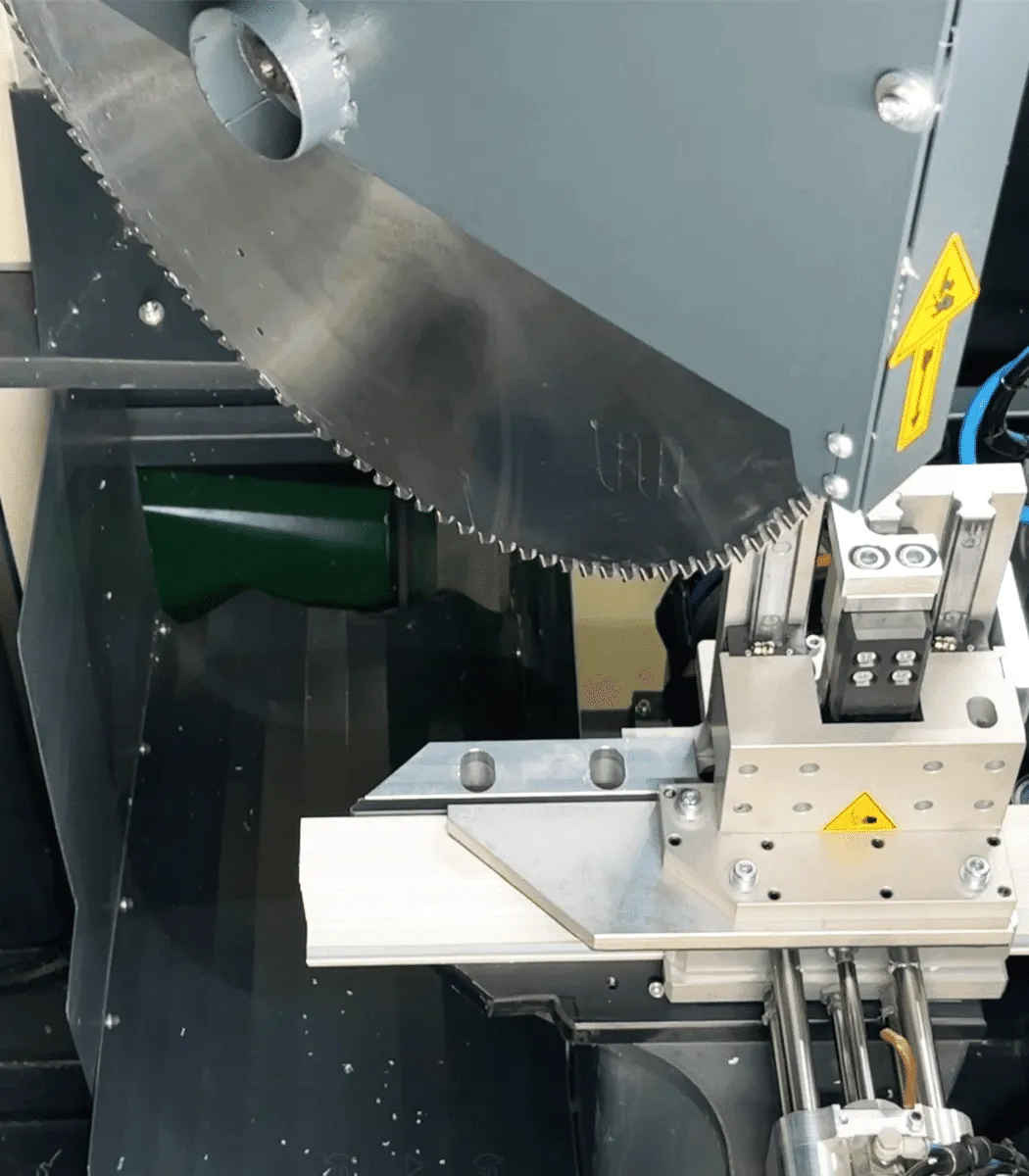

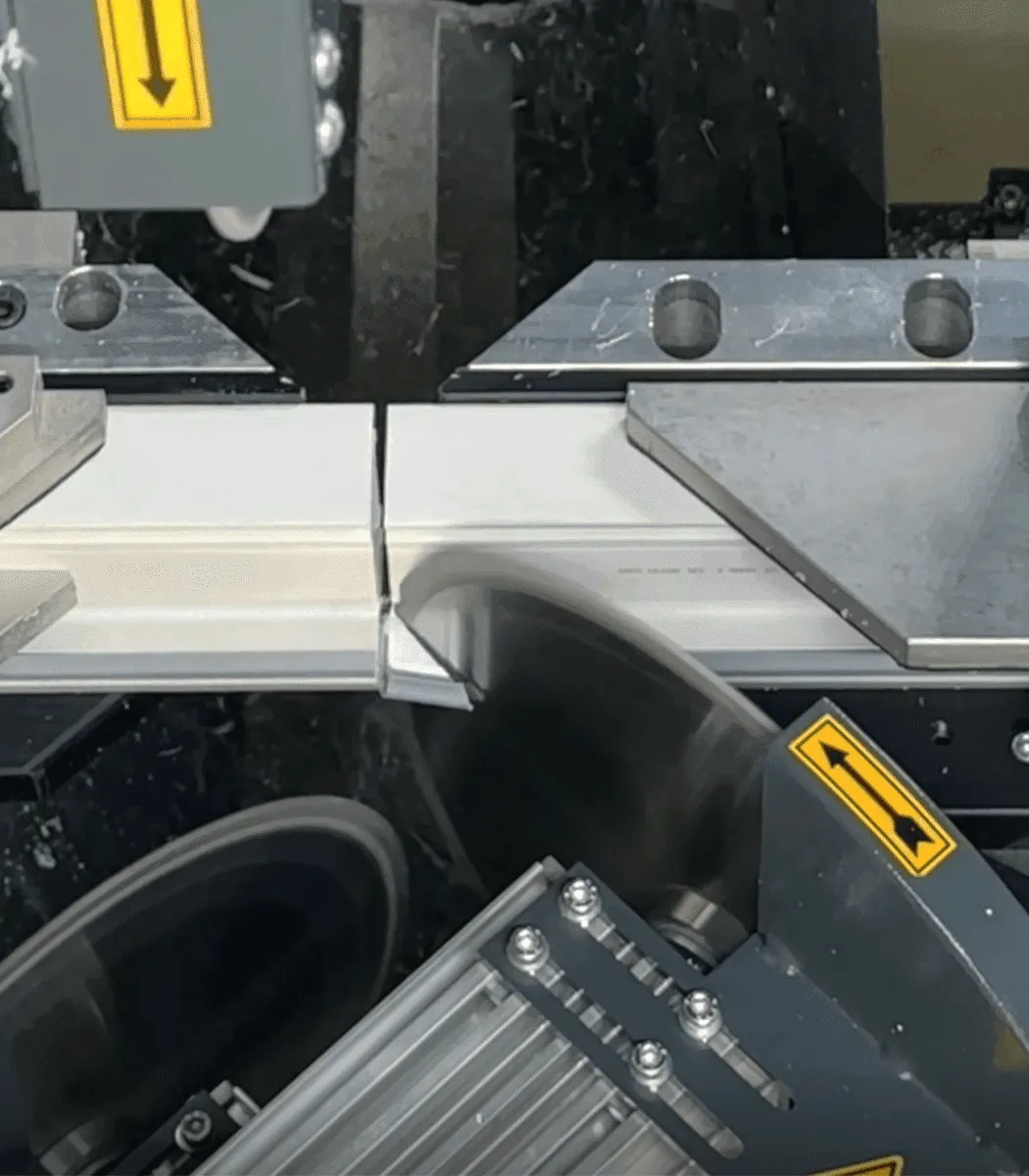

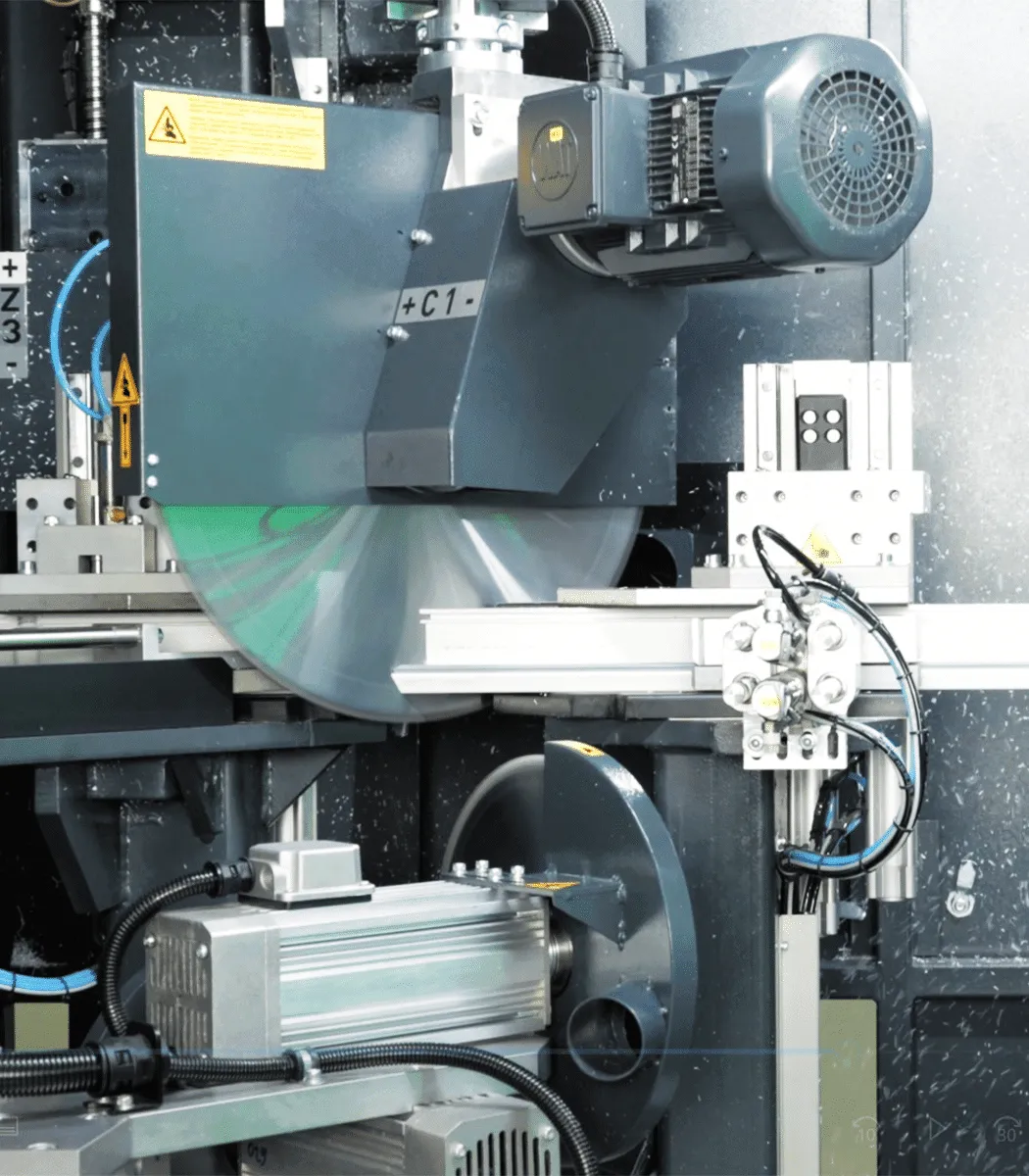

• The servo-axis-controlled 500 mm diameter saw cuts all angles between 30° and 150° with 0.1° accuracy.

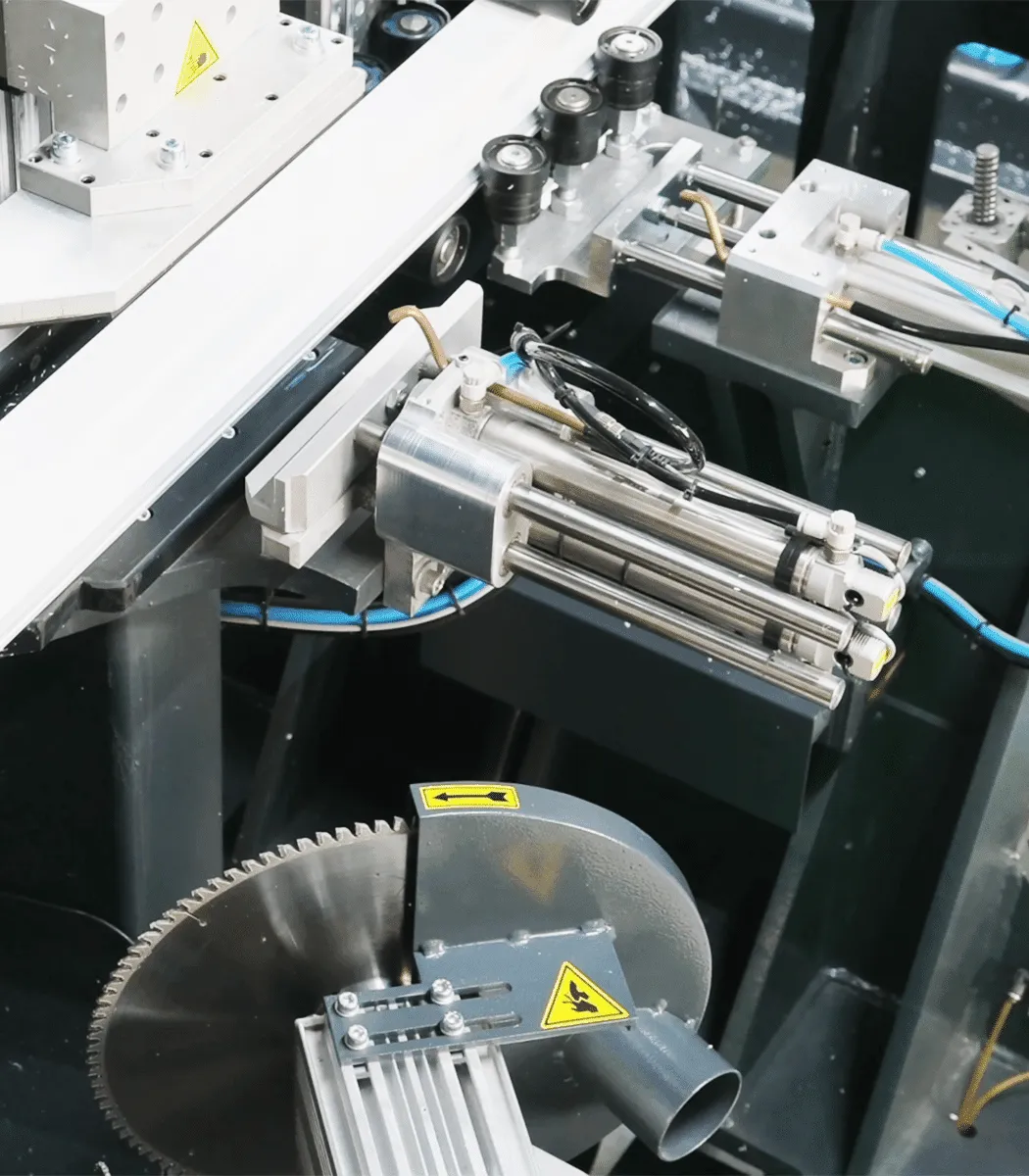

• A newly designed double clamping system stabilizes both the bevel and rebate using individual clamps and software-controlled variable clamping pressures for each of the four sawing clamps.

• Software-controlled transom support is provided for Z and T profiles.

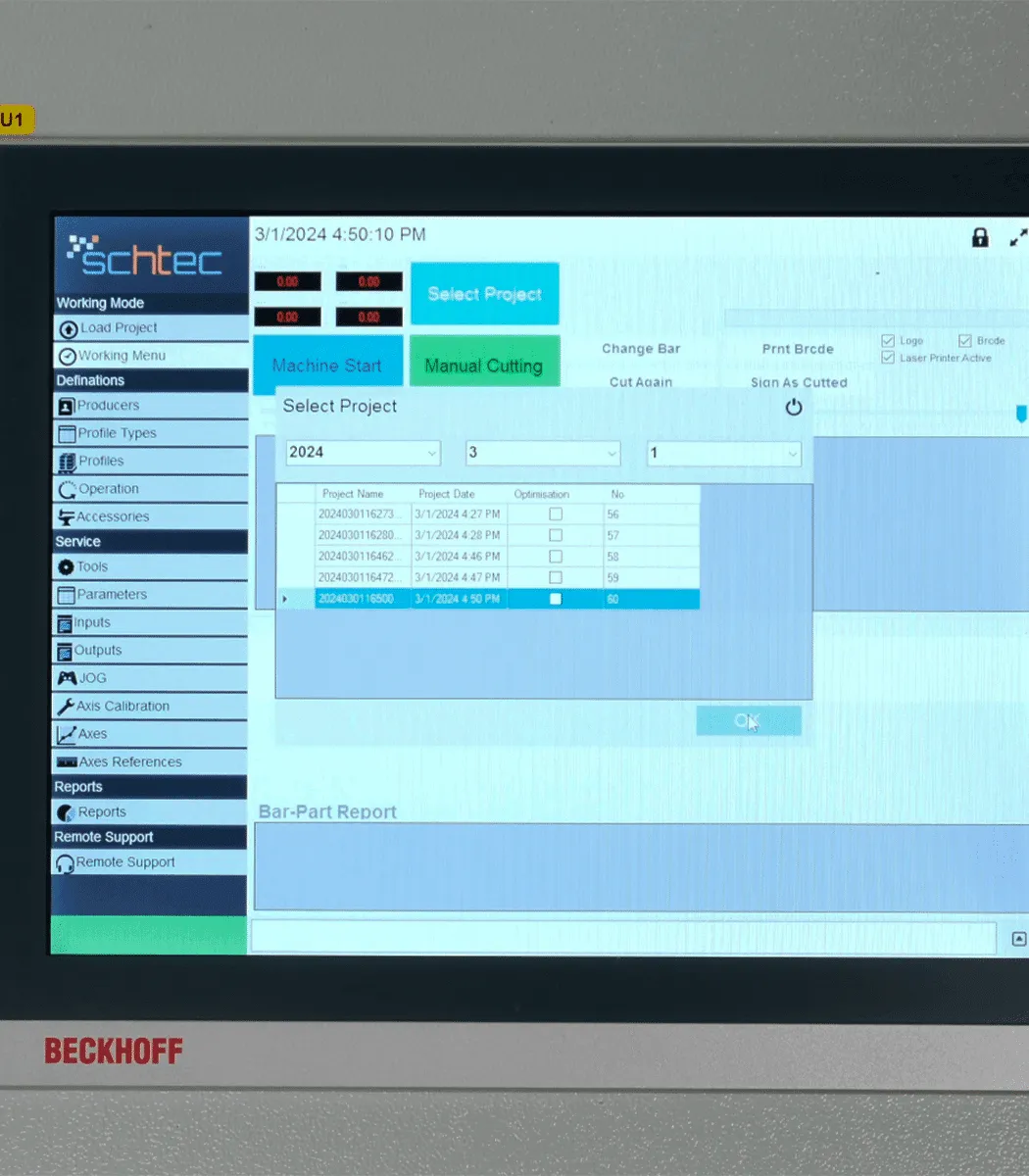

• Private HMI software developed by the SCHTEC Software Department supports uploading data files from various window design programs and is fully compatible with UK software such as BM and First Degree.

• All alarms and machine faults are displayed on the HMI with corresponding solutions.

• The system features a 15” touchscreen and a high-performance industrial PC with a Windows Embedded operating system.

• An industrial PC-based servo control system is powered by Beckhoff technology.

• Online diagnostics and troubleshooting are available through a user-friendly interface.

• File transfer is possible via USB, Ethernet, and remote desktop over Wi-Fi or Ethernet.

• A central lubrication system reduces maintenance time.

• A scrap conveyor beneath the saw and extraction ports on all saw blade cowls improve waste management.

• The machine has a production capacity of 100–110 frames per 8-hour shift, depending on complexity, averaging approximately one piece every 18.6 seconds.

Product Description

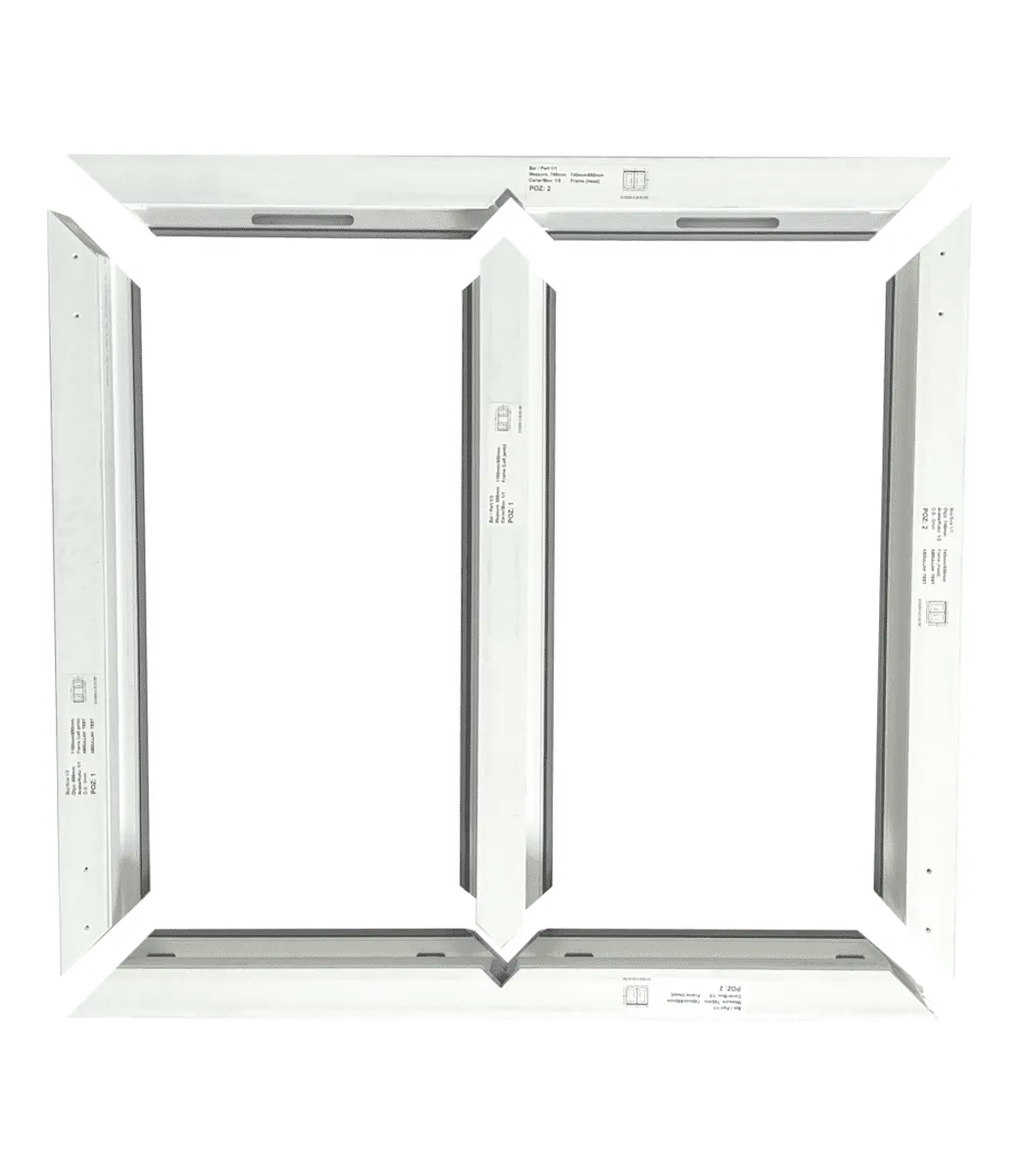

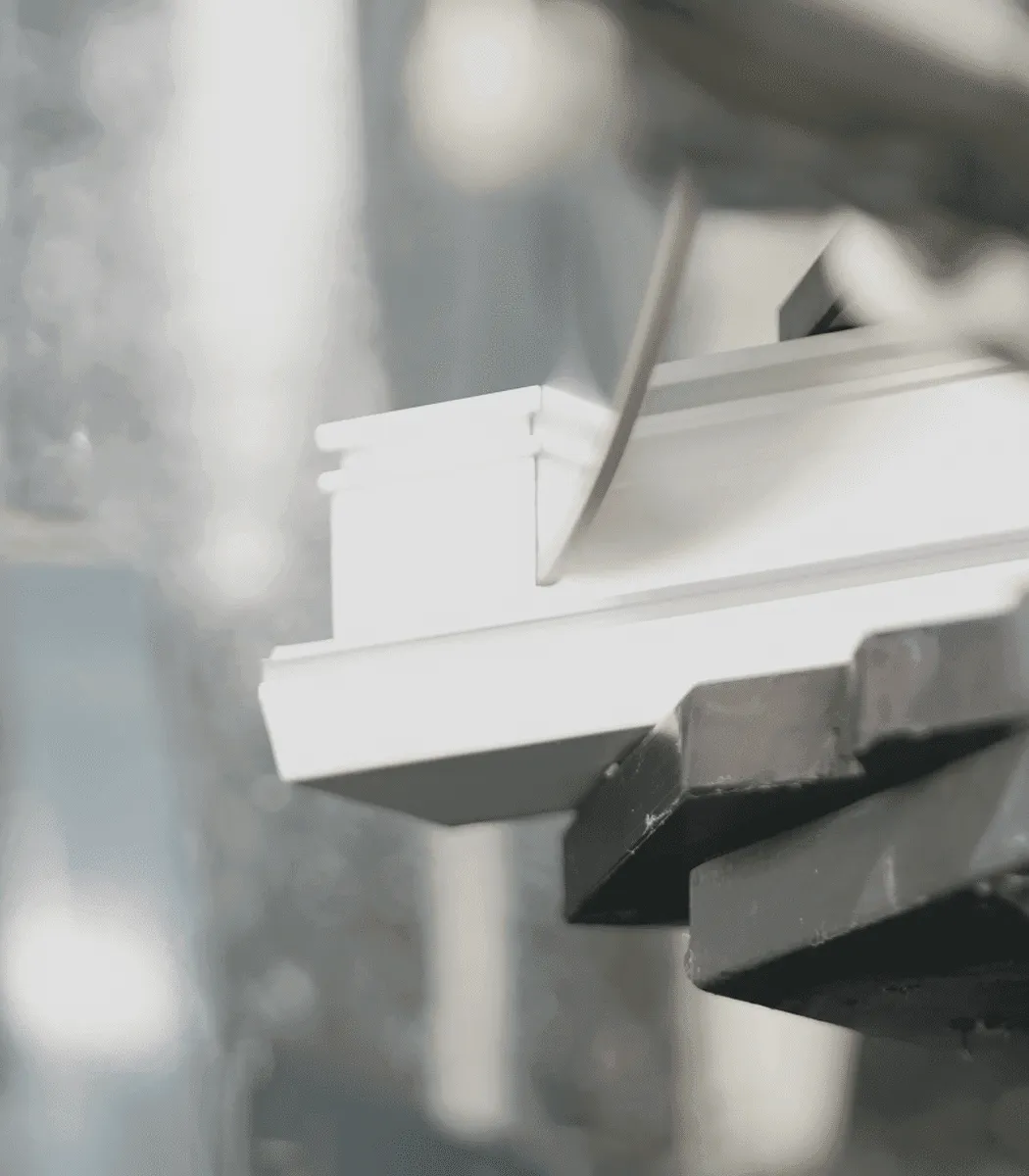

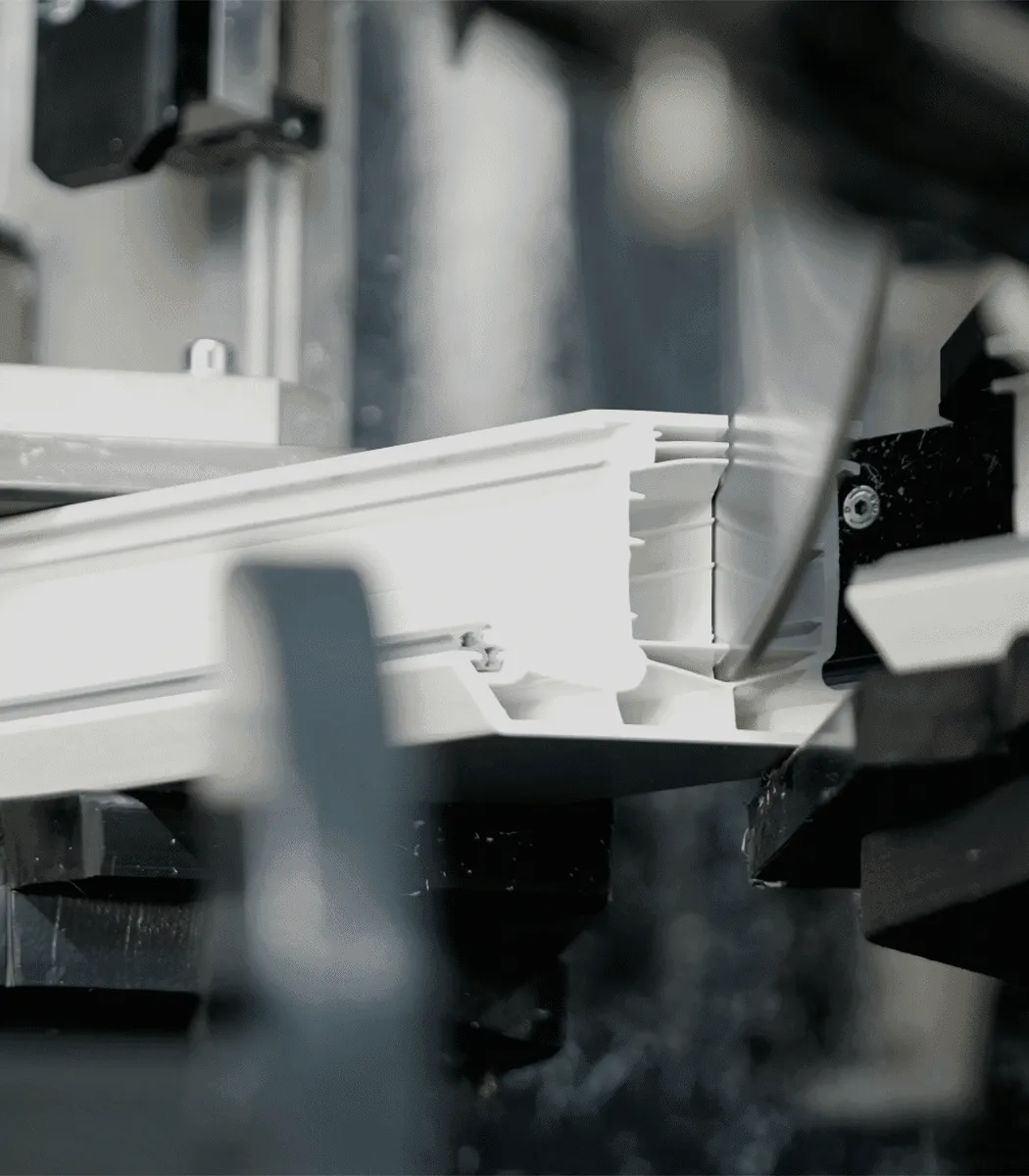

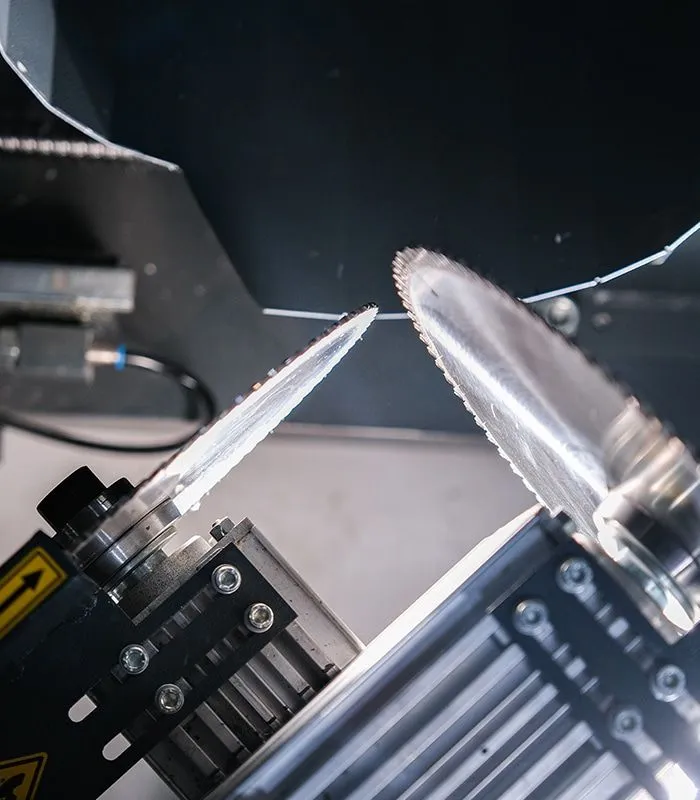

The SCHTEC SVMC 120 is a four-axis servo controlled center that combines V-type cutting, drilling, and milling of PVC and aluminum profiles in one system. It processes profiles up to 6.5 meters with an elevator loading system for continuous operation. V-type cutting technology ensures strong and aesthetic joints, while a multi-tool changer speeds up operations. The 15” touchscreen, user-friendly software, and Industry 4.0-compatible Ethernet connectivity make the SVMC 120 an ideal solution for high-precision and efficient production.
