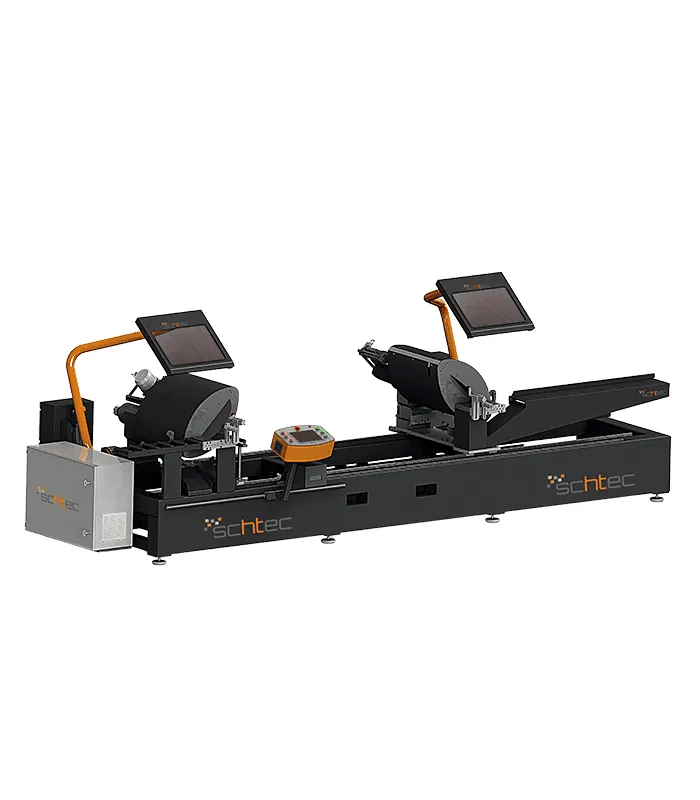

DCA 460 - Servo Controlled Automatic Double Head Aluminium Cutting Machine (Beyaz)

DCA 460 Double Head Aluminium & PVC Cutting Machine

Name: DCA 460 Double Head Aluminium & PVC Cutting Machine
Brand: Schtec
SKU: DCA-460

SCHTEC DCA 460: Servo-controlled double head cutting machine for aluminum profiles. 600 mm blades, 22°–158° angles, 0.1 mm precision, 6.5 m cutting capacity.

Download Brochure

SKU: DCA-460

Category: Cutting Machines

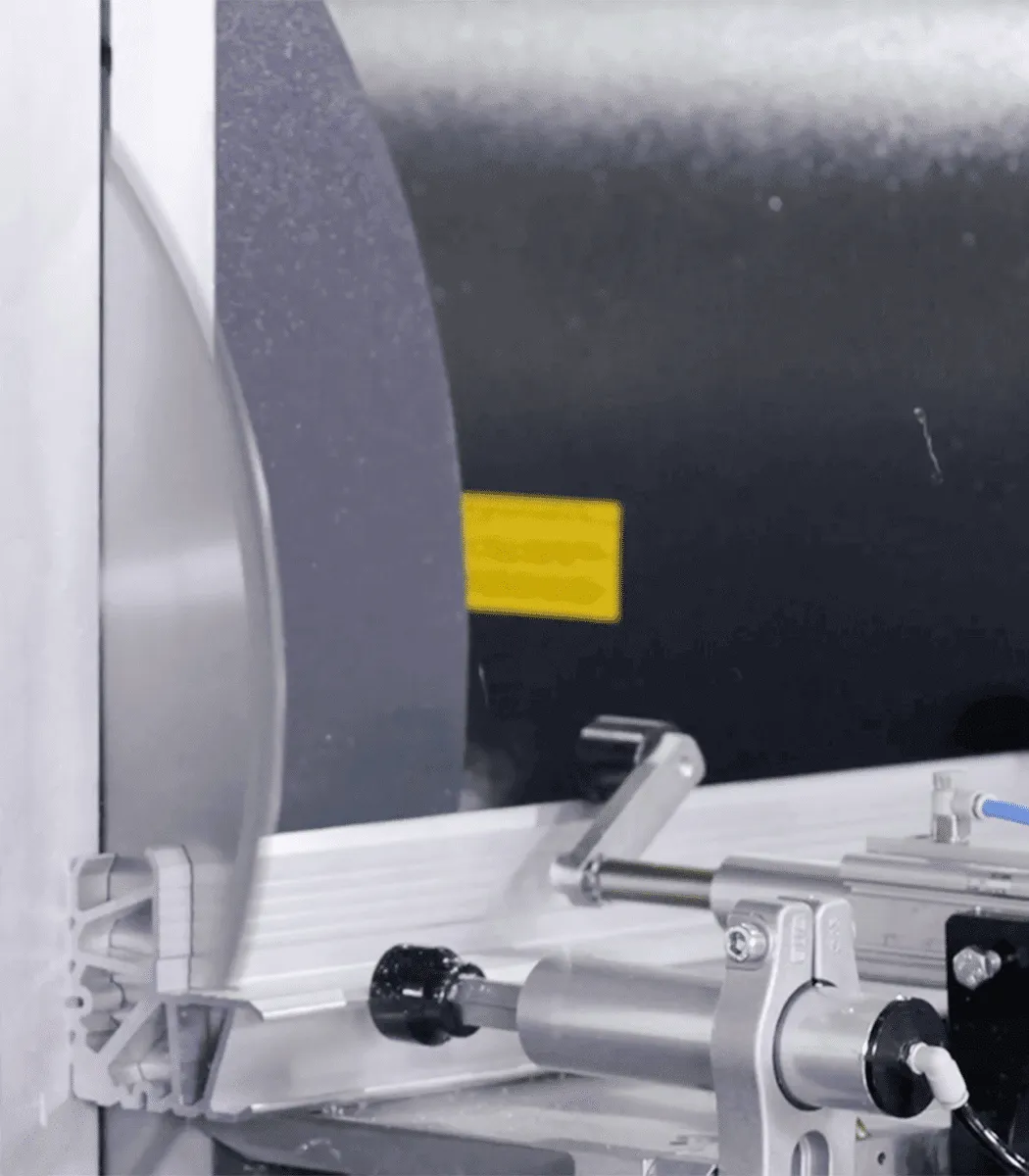

High-speed and precise cutting of aluminum profiles with a 3-axis servo system
Rigid cutting and high angle accuracy ensured by strong construction, linear guides, and servo motors
Industrial PC-based servo control system with 10” touchscreen (Beckhoff)
EtherCAT-based controlled drivers and high-torque servo motors
Remote machine connection via WiFi or network
File transfer via USB or network
Central lubrication system
Error messages displayed on-screen with interface software developed by Schtec Software Department
Remote service connection for troubleshooting and full automation system access
High angle accuracy ensured by cycloid gap-free gearbox
Automatic transfer of profile height from profile data
Automatic aluminum corner cleat cutting
Cooling system for aluminum profile cutting
Hydropneumatic system for aluminum profile cutting
Servo motor-controlled automatic adjustment for intermediate angles between 22° and 158°
Single cutting capability
Easily adjustable saw cutting speed
Profile support conveyor included as standard

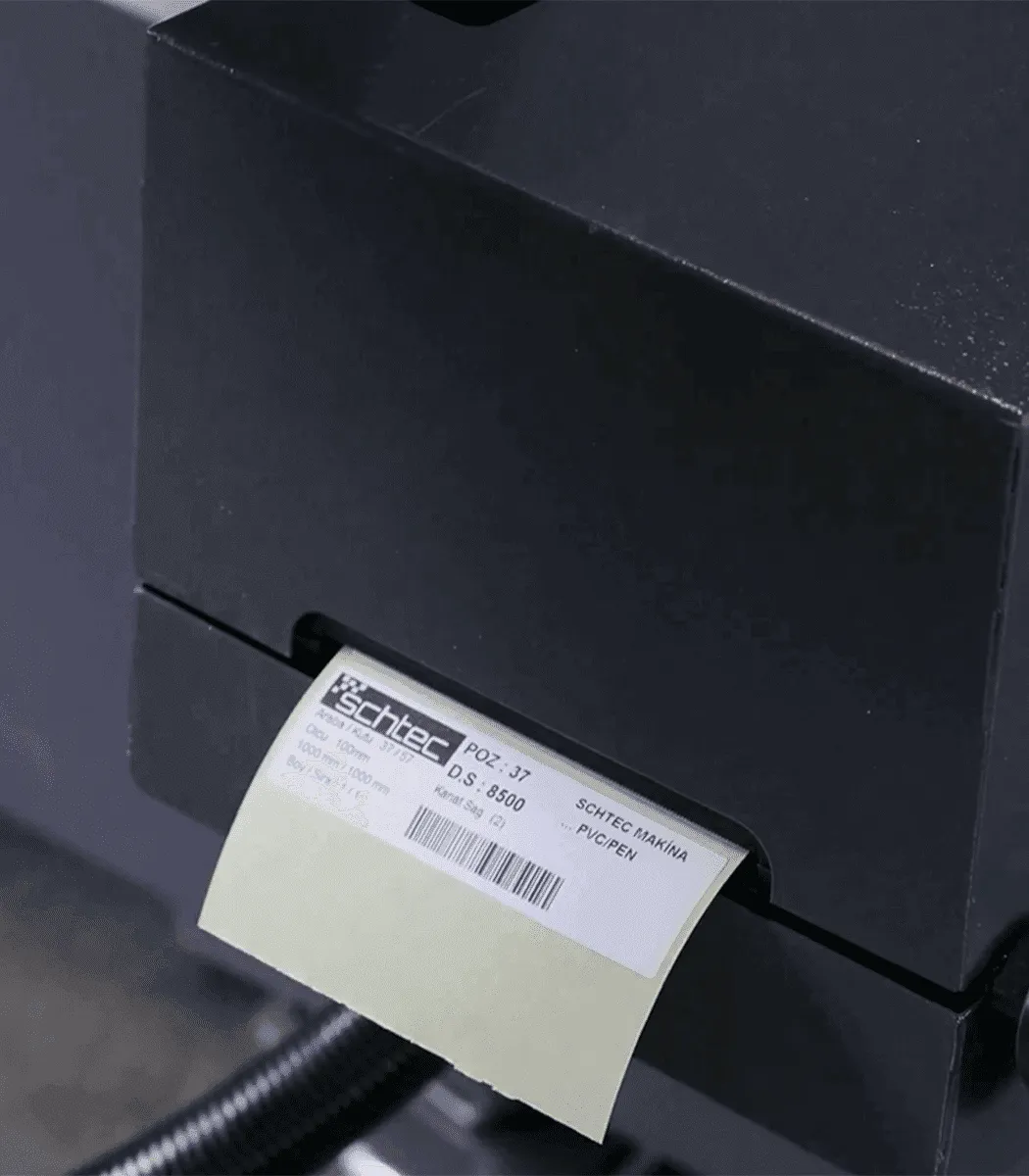

Barcode Printer (BP 922)

Optional

The Schtec DCA 460 is a fully automated double-head cutting machine designed for high-precision aluminum profile processing. Equipped with a 3-axis servo system, 600 mm saw blades, and servo-controlled angle adjustment between 22° and 158°, it delivers fast and accurate cuts. With a Beckhoff industrial PC, EtherCAT drivers, and a user-friendly 10” touchscreen, it offers complete automation. Features such as central lubrication, remote access, and cooling system ensure low maintenance and high efficiency, making it ideal for large-scale production lines.

Frequently Asked Questions

Find quick answers to common questions about our PVC Cutting Machines.

1. What is the difference between a single-head and a double-head cutting machine?

A single-head cutting machine, like the Schtec SS 110, is a versatile and compact solution ideal for lower-volume production or custom-angle cuts, as it makes one cut at a time. A double-head cutting machine, such as the SD 140 or DCA 440, significantly increases production speed by cutting both ends of a profile simultaneously at perfect 45° or 90° angles. This makes them ideal for medium to high-volume manufacturing where efficiency is key.

2. How do Schtec machines achieve a clean and precise cut on PVC?

A glazing bead saw, such as the Schtec SG 100/110, is a specialized machine designed specifically for cutting the small PVC glazing bead profiles that hold the glass in place within the window frame. It uses a specially designed mould system to cut two profiles at once at a precise 45° angle. For full automation and accuracy, these machines can be paired with automatic measuring systems like the MA 270 or the MD 272 digital measuring device.

3. What is a "glazing bead saw" and which profiles is it for?

4. Many machines are listed as "PVC & Aluminium." Do they require special adjustments for different materials?

Yes. While machines like the SD 140 and SS 110 are engineered to cut both materials, processing aluminium requires different settings and features. For cutting aluminium, a cooling system is offered as an option to lubricate the blade and prevent overheating. Additionally, a hydro-pneumatic system is used to ensure a smoother, more controlled blade feed speed, which is necessary for cutting harder aluminium profiles without causing stress.

5. How does an automatic measuring system improve the glazing bead cutting process?

An automatic measuring system, like the MA 270, and an electronic digital measuring device, like the MD 272, eliminate the risk of human error in measurement. The measured data for glazing beads can be transferred to the saw via Wi-Fi. The machine then cuts the pieces in the received order, preventing confusion and ensuring every bead is cut to the exact required length with 0.1mm precision. This not only increases accuracy but also significantly speeds up the workflow.

Power Supply	400 V, 3 Ph, 50-60 Hz
Total Power	8.2 kW
Each Saw Motor Power	3 kW
Saw Diameter	600 mm
Saw Speed	2,800 rpm
Cutting Length	250 mm – 6,500 mm
Air Pressure	6-8 bar
Air Consumption	60 lt./min
Machine Height	2,000 mm
Machine Length	7,400 mm
Machine Width	2,260 mm
Machine Weight	2,470 kg
