SMC 308 PVC Profile Processing & Cutting Center

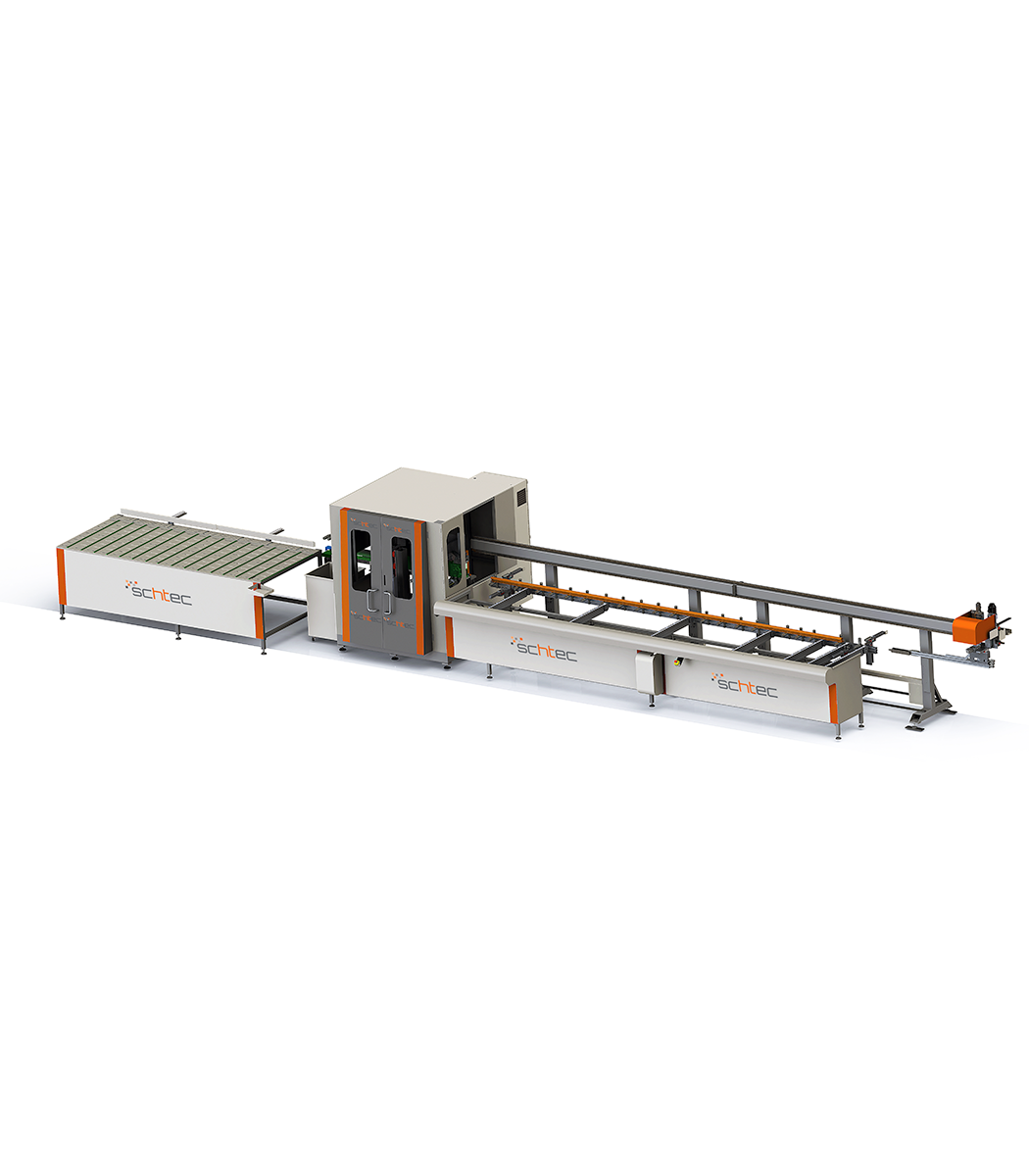

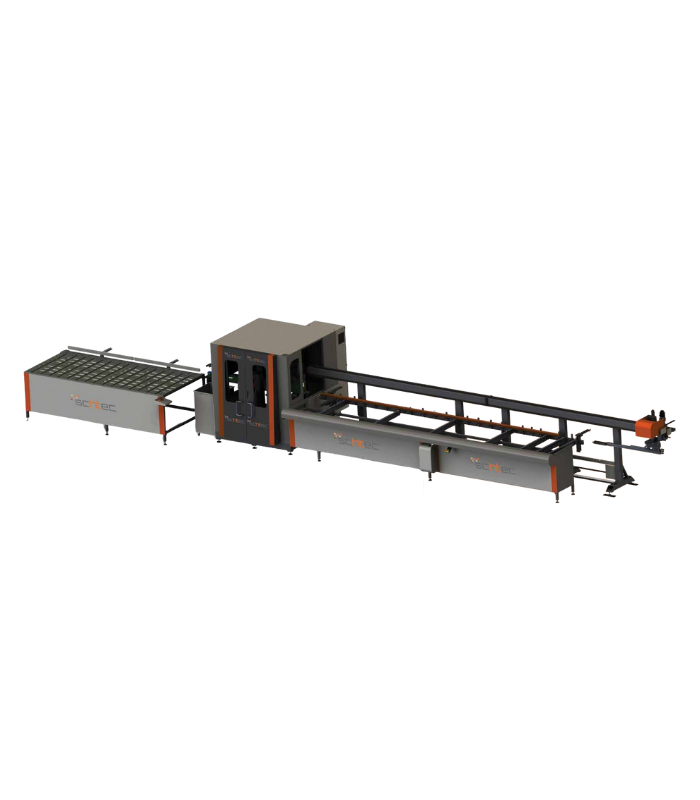

Name: SMC 308 PVC Profile Processing & Cutting Center
Brand: Schtec
SKU: SMC-308

SCHTEC SMC 308: High-precision CNC processing center for PVC profiles, capable of cutting, drilling, marking, and milling. Features fixed-angle cutting (45°-90°-135°), air-cooled spindles, industrial PC-based control, and Schtec HMI software for smooth integration with window design systems.

Download Brochure

SKU: SMC-308

Category: Profile Processing & Cutting Centers

CNC processing center can do all operations on PVC profiles such as cutting, marking, opening key holes, copy routing for water slot milling, hinge holes, handle holes etc.
Cutting at fixed angles of 45-90-135 degrees with 0.1 degree precision, with saw diameter of 500 mm at 45-135 degrees, and 550 mm at 90 degrees.
Milling with 2 high-speed special design air-cooled 0.75 Kw spindles.
Sizing and milling operations on profile can be performed at the cutting station and milling station.
With the processed profile, 5 pieces can be loaded on the machine. (Max.length 6.5 m)
Private HMI software developed by Schtec Software Departmant allows diﬀerent kinds of window design program data files to be uploaded on machine.
All alarms and machine faults are simultaneously displayed on screen along with solutions
15” Touch Screen and high performance industrial PC with Windows 10 Embedded system. This system can operate fanless between 0°C and 55°C.
Industrial PC Based Servo Control System (Beckhoﬀ)
Online diagnostic and troubleshooting via user friendly interface.
File transfer by USB or network and remote desktop connection.
Central lubrication system reduces the time spent for maintanence.
With the sawdust collecting pan, the burrs from the cutting are removed.

Product Description

The Schtec SMC 308 Profile Processing and Cutting Center is a high-performance CNC machine for PVC profiles, designed for precise operations like cutting, marking, hinge hole drilling, handle hole milling, and water slot routing. It offers fixed-angle cuts at 45°, 90°, and 135° with 0.1-degree precision, using a 500/550 mm saw. Equipped with three high-speed air-cooled spindles and Schtec’s proprietary HMI software, it ensures smooth integration with various window design programs. The industrial PC-based Beckhoff servo control system, remote access, USB/network file transfer, and a central lubrication system make it the perfect solution for high-efficiency PVC window and door production.

Frequently Asked Questions

Find quick answers to common questions about our Profile Processing & Cutting Centers for PVC Profiles

1. What is the main advantage of a Profile Processing & Cutting Center?

A Profile Processing & Cutting Center is a fully automated CNC machine that combines multiple operations into a single, continuous workflow. Instead of moving profiles between separate machines for cutting, milling, drilling, and screwing, these centers perform all processes in one integrated station. This drastically reduces production time, minimizes labor dependency, eliminates manual errors, and optimizes the factory floor space.

2. What specific operations can these centers perform on PVC profiles?

Schtec's CNC centers are highly versatile. They can perform all necessary operations on PVC profiles, including: cutting at any angle (e.g., between 30-150 degrees), milling water slots, drilling for handles and hinges, marking parts, and even automatic reinforcement screwing on advanced models. The CSML 240 and SMC 360 can be equipped with optional screwing units to create a complete, end-to-end processing solution.

3. How do Schtec machining centers achieve such high speed and precision?

Our centers use a high-performance industrial PC-based control system (from our partner Beckhoff) that manages high-torque servo motors on all axes. This allows for positioning accuracy of up to 0.1 mm. The axes move on hardened steel rack-pinion and ball screw systems with central lubrication, ensuring smooth, repeatable, and accurate movement at high speeds for many years.

4. What is the benefit of a multi-profile infeed magazine?

The infeed magazine, or loading station, allows operators to load multiple raw PVC profiles (often 8 to 11 bars) at once. The machine then automatically feeds, processes, and cuts each profile according to the pre-loaded job list. This feature dramatically reduces idle time, minimizes operator dependency, and enables continuous, "lights-out" manufacturing, which is a massive boost to overall productivity. The SMC 320 and SMC 360 feature an elevator system to further reduce loading times.

5. How do these CNC centers integrate with our existing software?

To ensure seamless integration into a modern digital factory, our machining centers are designed to be fully compatible with all major window design programs. Job files can be transferred to the machine via Ethernet (network connection), Wi-Fi, or USB. The system can also be equipped with a barcode reader to instantly load the correct job for a specific profile, eliminating manual entry errors and ensuring maximum data accuracy from the office to the factory floor.

Power Supply	400 V, 3 Ph, 50-60 Hz
Total Power	8 kW / 20 A
Max. Profile Processing Height	170 mm
Min. Profile Processing Height	40 mm
Max. Profile Processing Width	135 mm
Min. Profile Processing Width	35 mm
Max. Raw Profile Length	6.500 mm
Max. Process Length for Profile	6.000 mm
Maximum Cutting Length	3.500 mm (extendable under certain conditions)
Minimum Cutting Length	400 mm
Min. Process Length for Profile	1.200 mm
Tool Diameter	5 mm Carbide High-Speed Cutter x 2
Tool RPM	12.000 rpm
Max. Axis Speed (Processing)	35 m/min
Max. Axis Speed (Rotary Table)	30°/sec
Max. Axis Speed (Conveyor)	30 m/min
Air Pressure	6-8 bar
Air Consumption	450 lt./min
Machine Height	2.180 mm
Machine Length	15.140 mm
Machine Width	3.030 mm
Machine Weight	3.860 kg
Standard Tool Count	2 pcs high-speed, special design, air-cooled 0.75 kW spindles
