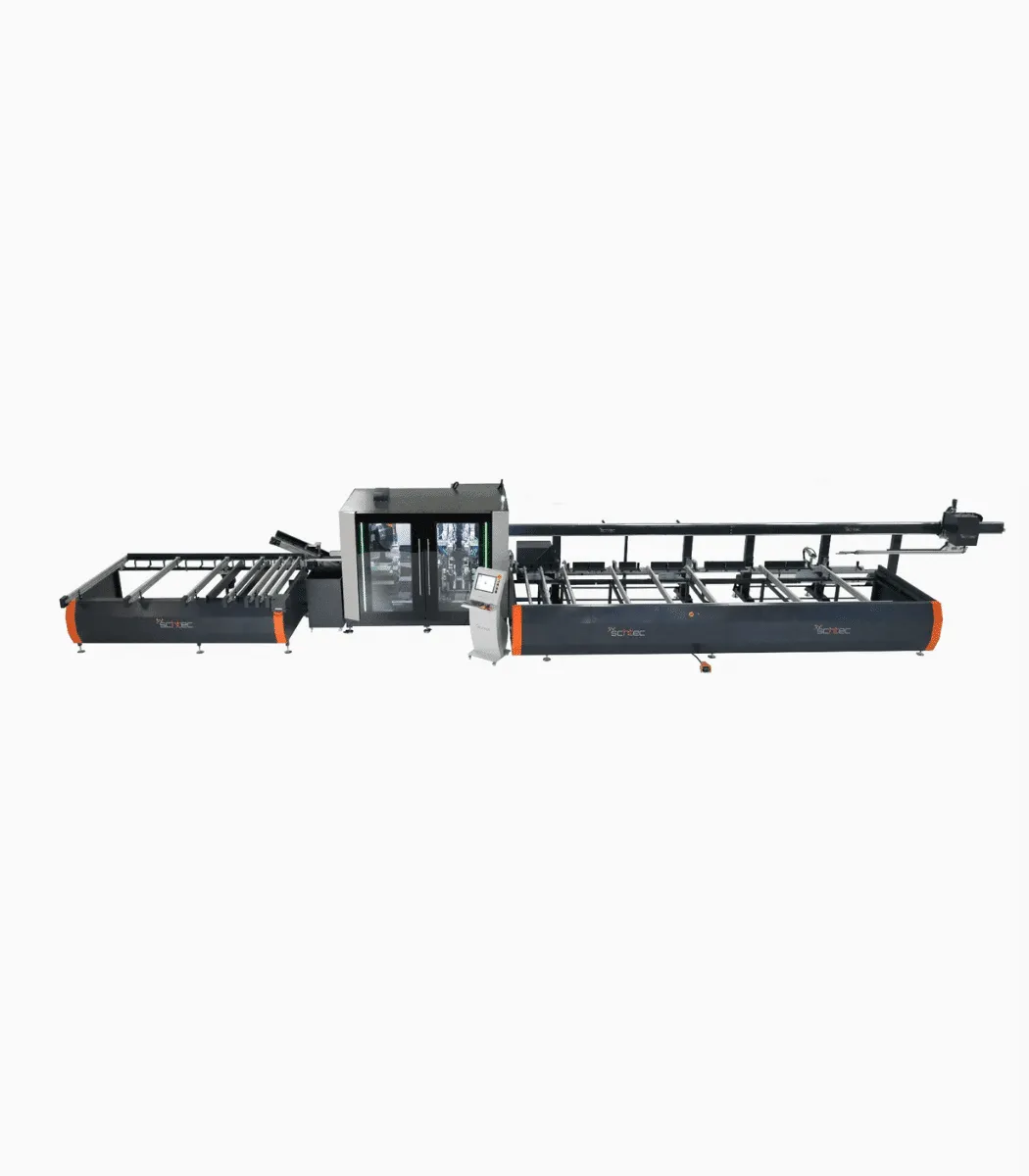

SMC 360 PVC Profile Processing & Cutting Center

Name: SMC 360 PVC Profile Processing & Cutting Center
Brand: Schtec
SKU: SMC-360

SCHTEC SMC 360: High-capacity CNC for PVC profiles. 0.1° precision 500 mm saw, 14-tool milling, 6.5 m length. Elevator loading, touchscreen HMI, efficient motor.

Download Brochure

SKU: SMC-360

Category: Profile Processing & Cutting Centers

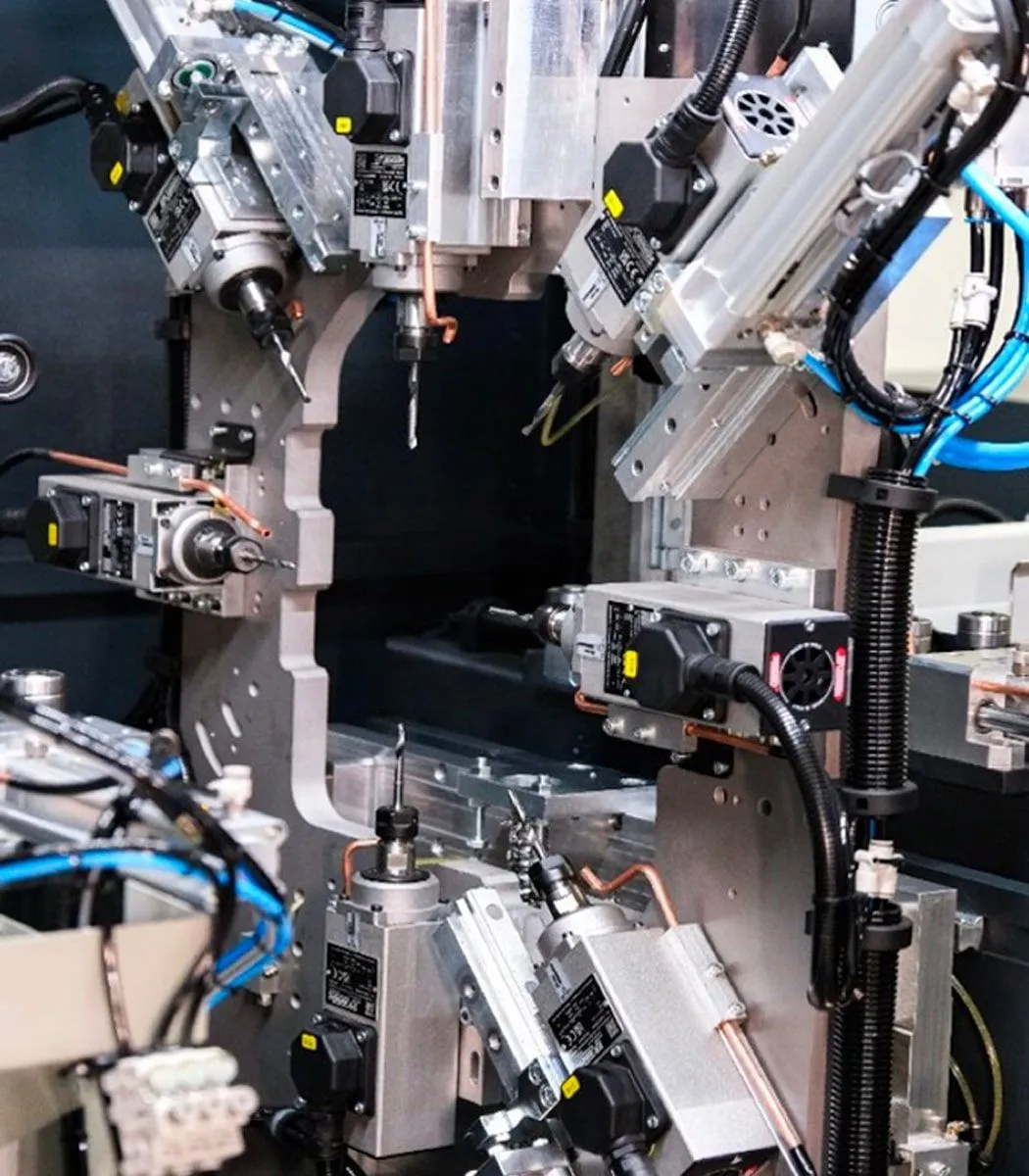

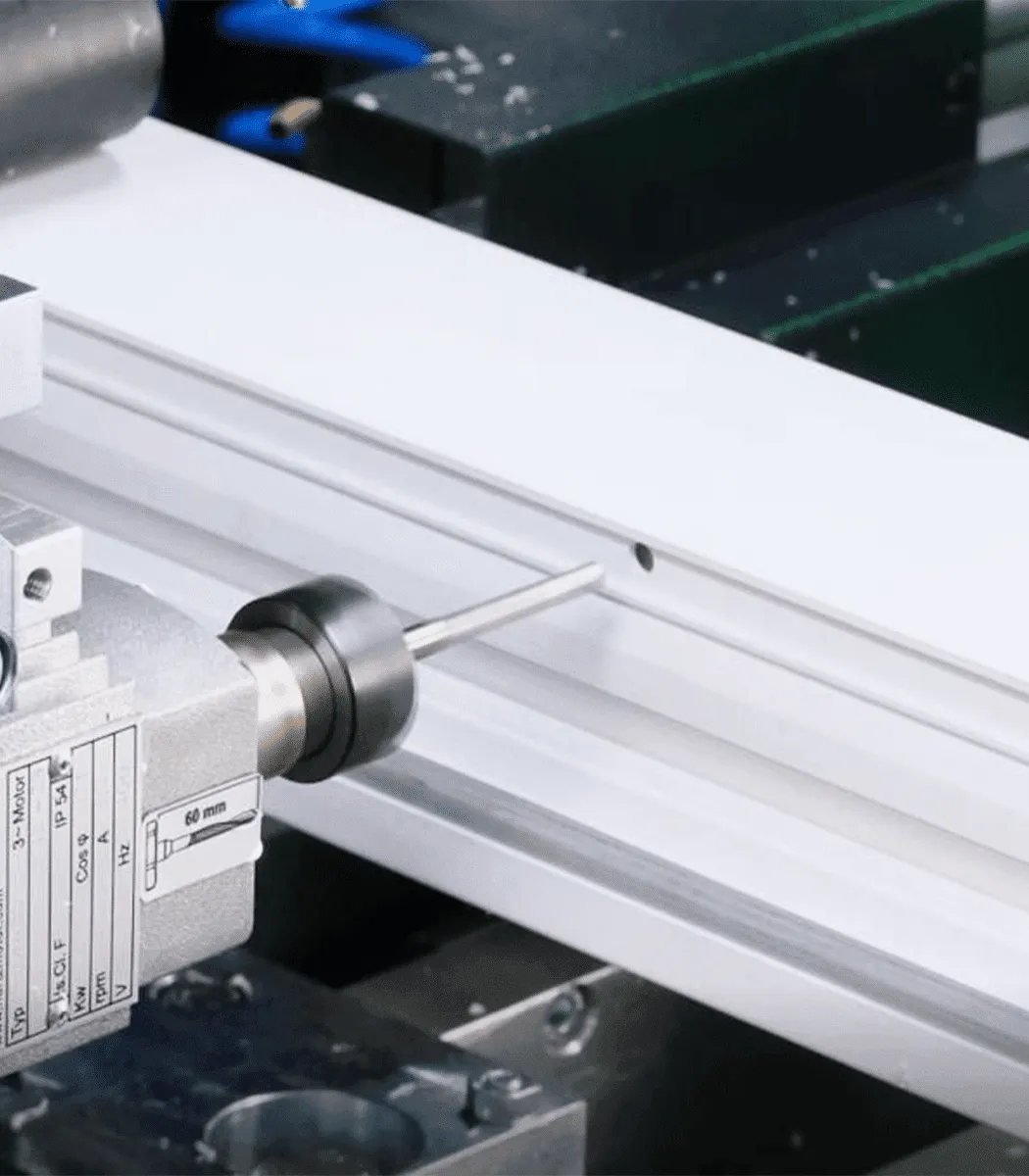

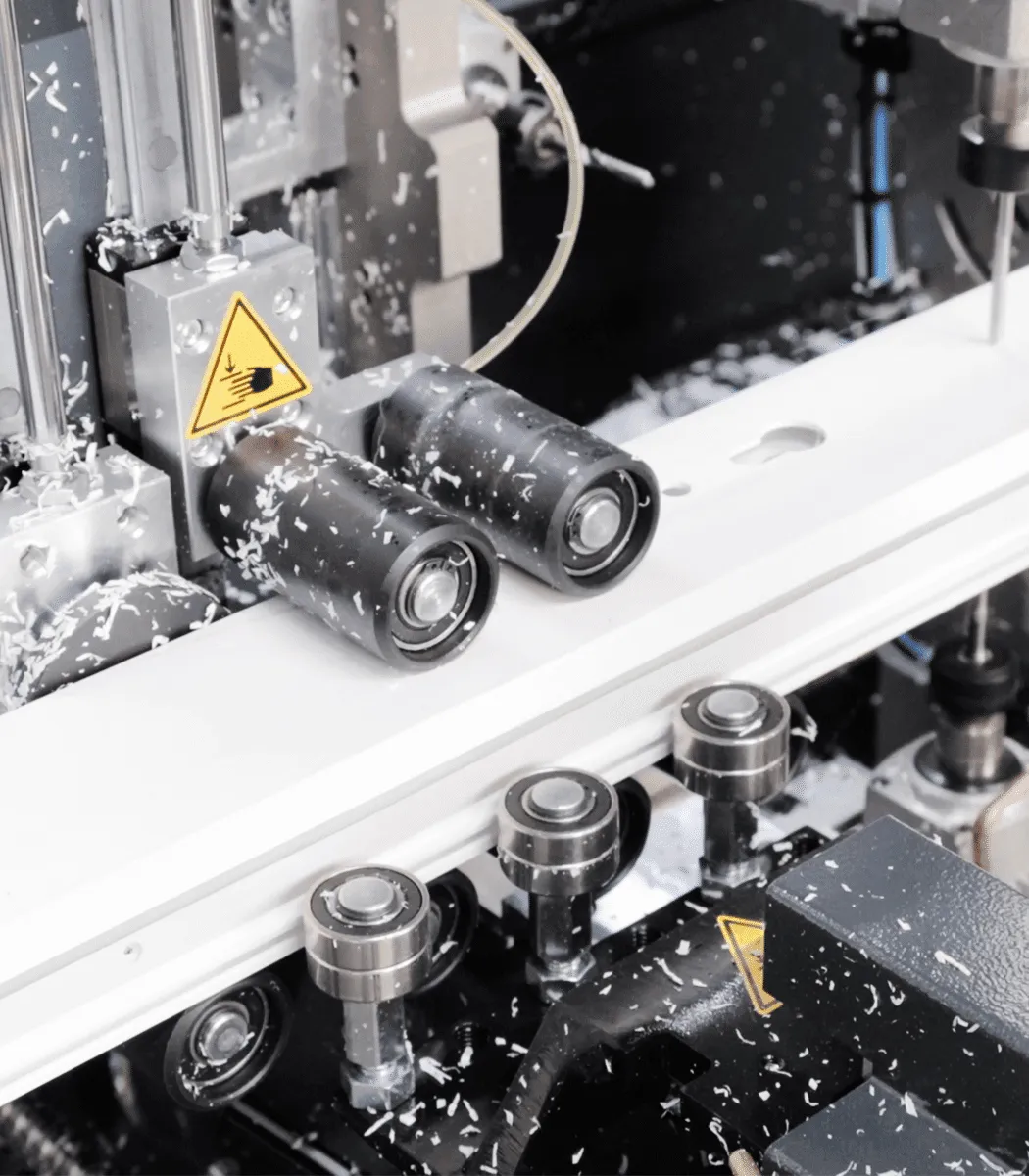

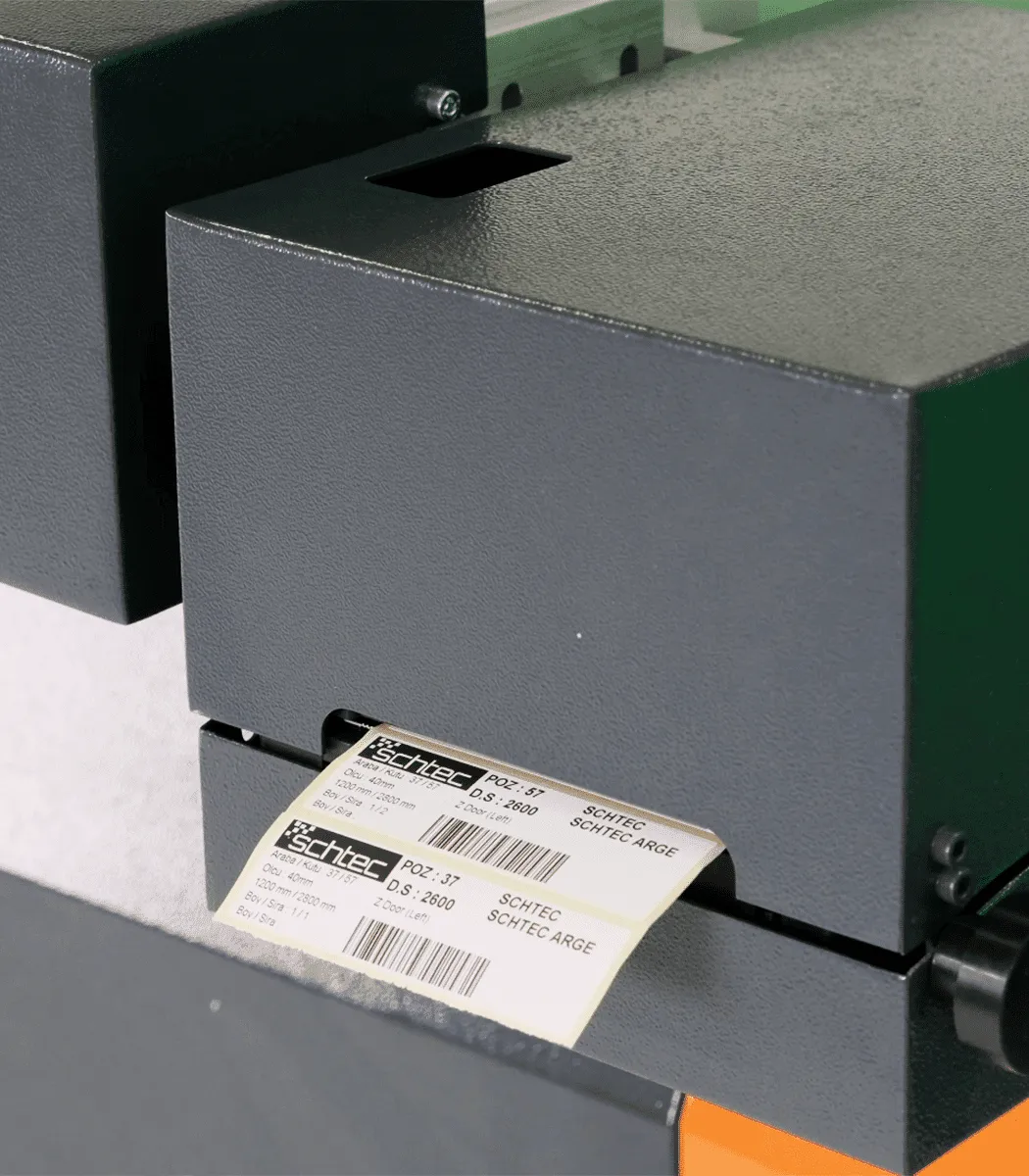

This 2 separately controlled CNC processing unit can do all operations with 14 tools on PVC profiles such as cutting, marking, opening key holes, copy routing for water slot milling, hinge holes, handle holes etc.
All angles between 30 - 150 degrees are cut with 0.1 degree accuracy servo axis controlled 500 mm diameter saw.
Servo controlled and capable of automatic positioning according to profile height axis on saw blade by way of this advance fast and rigid cutting.

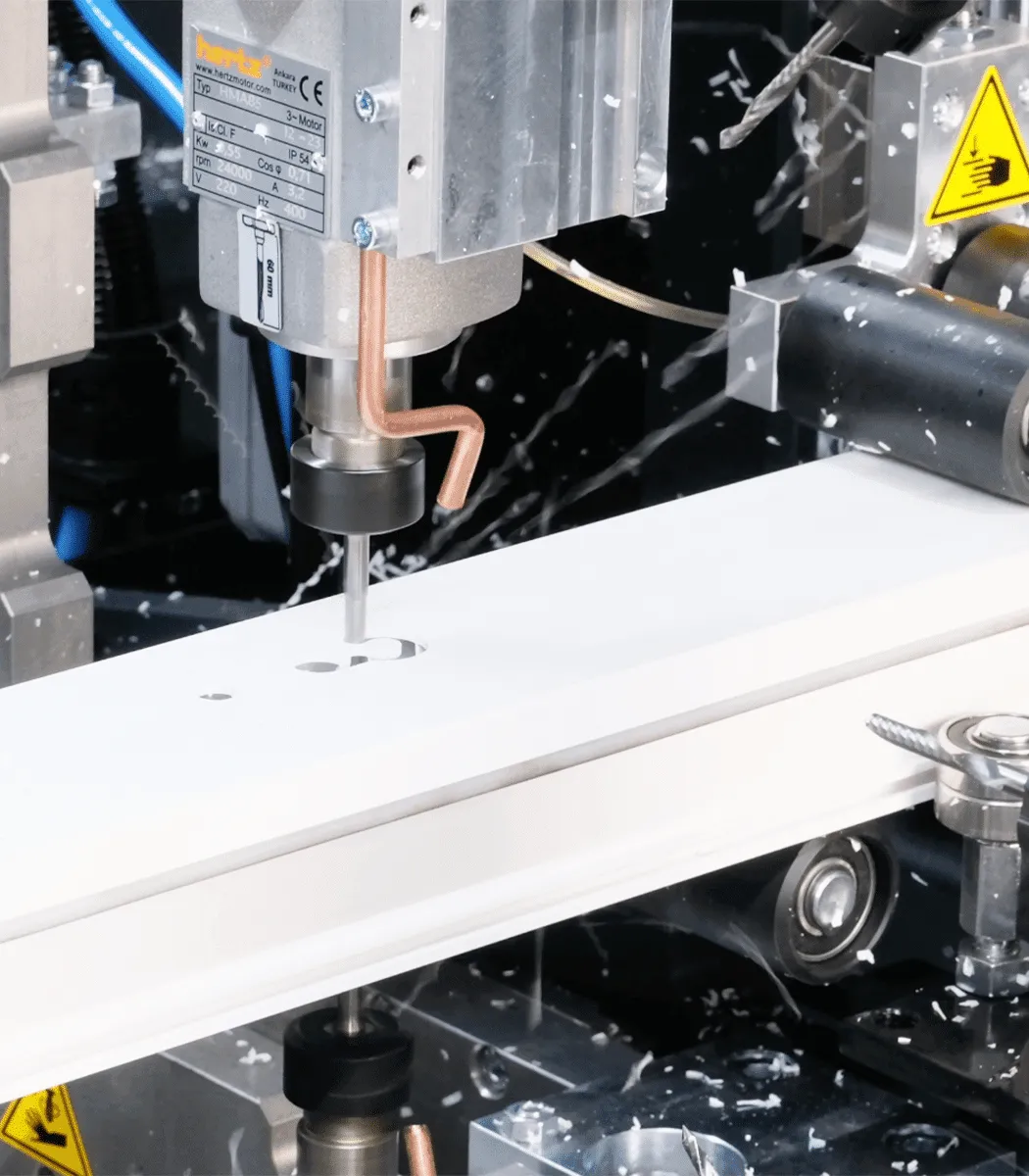

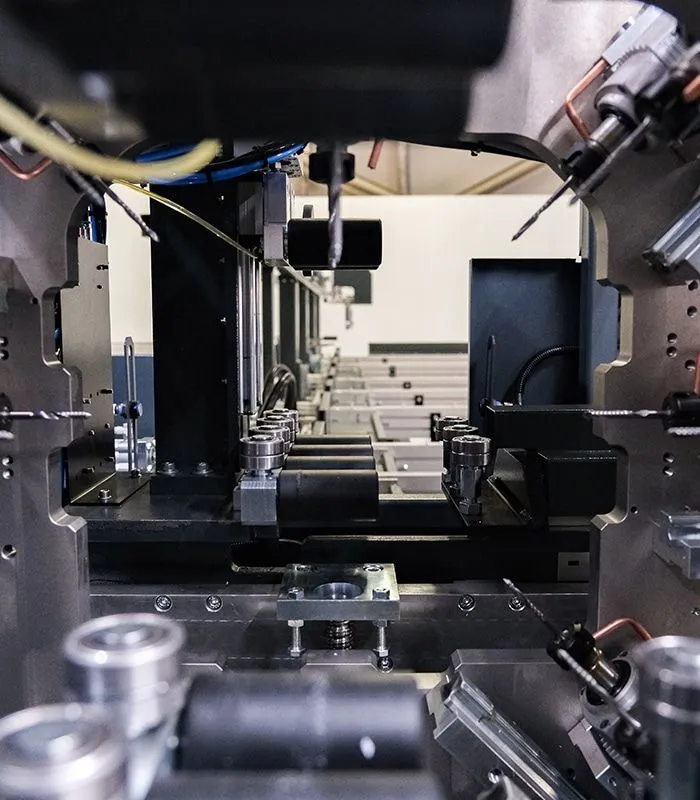

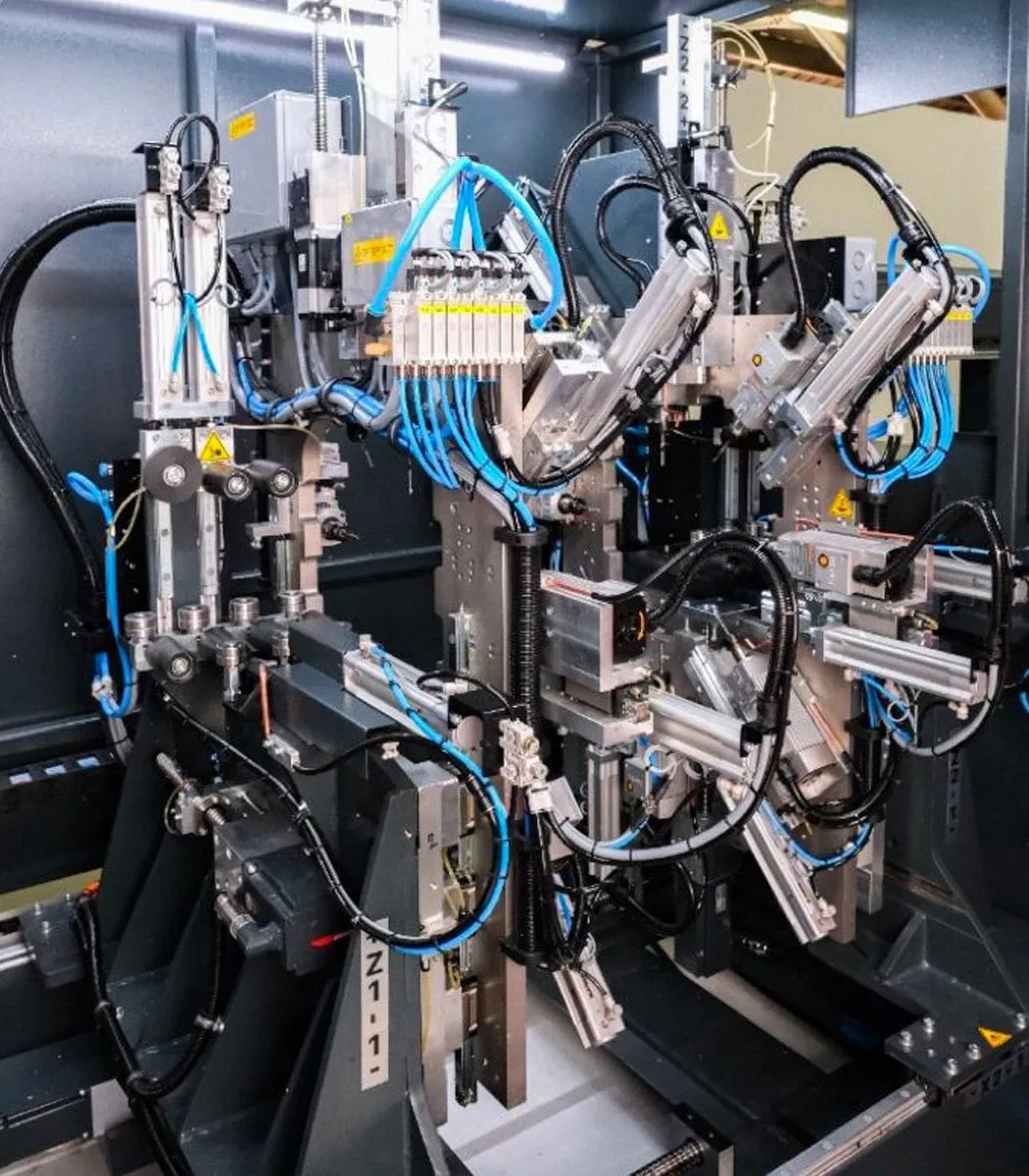

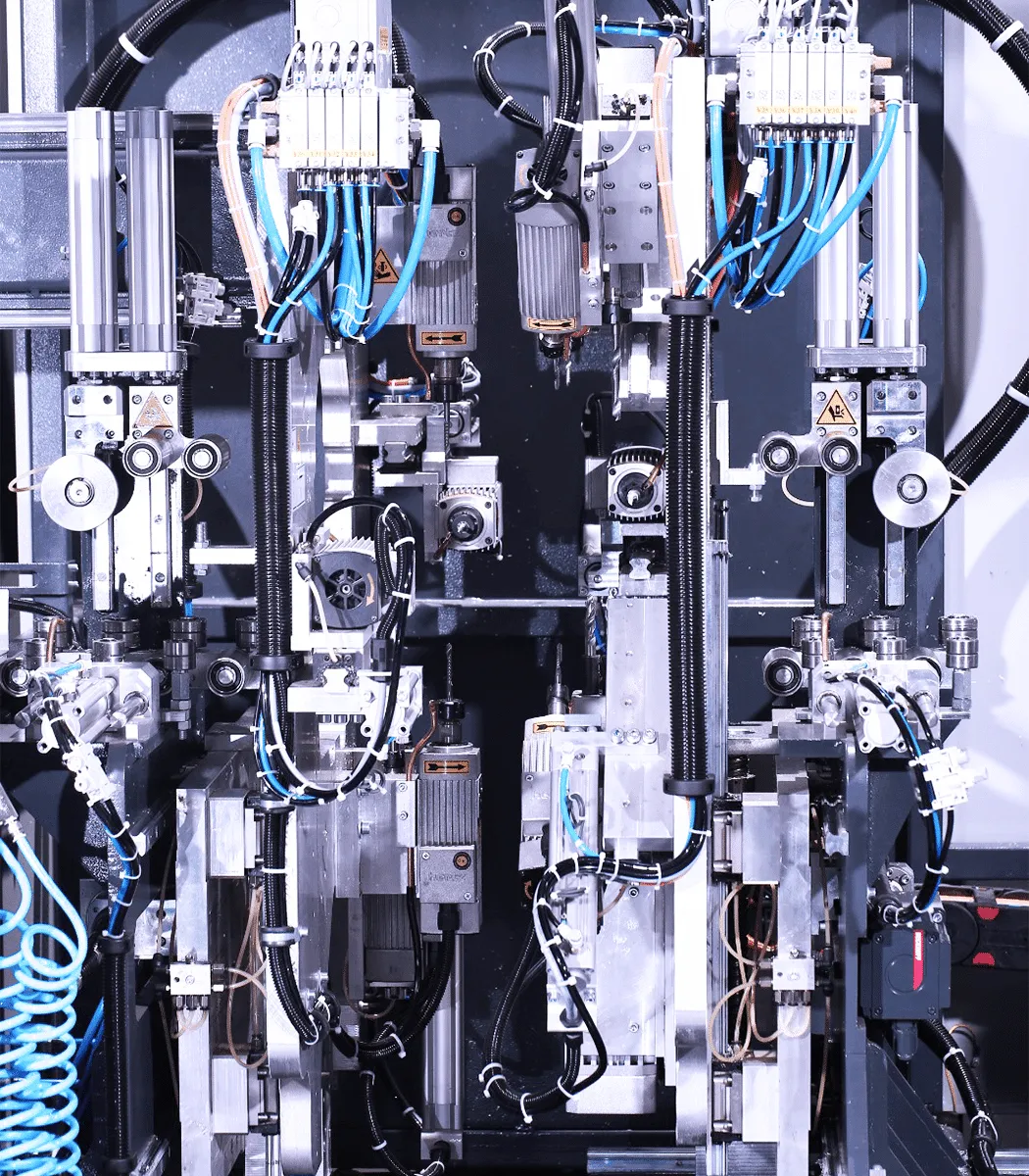

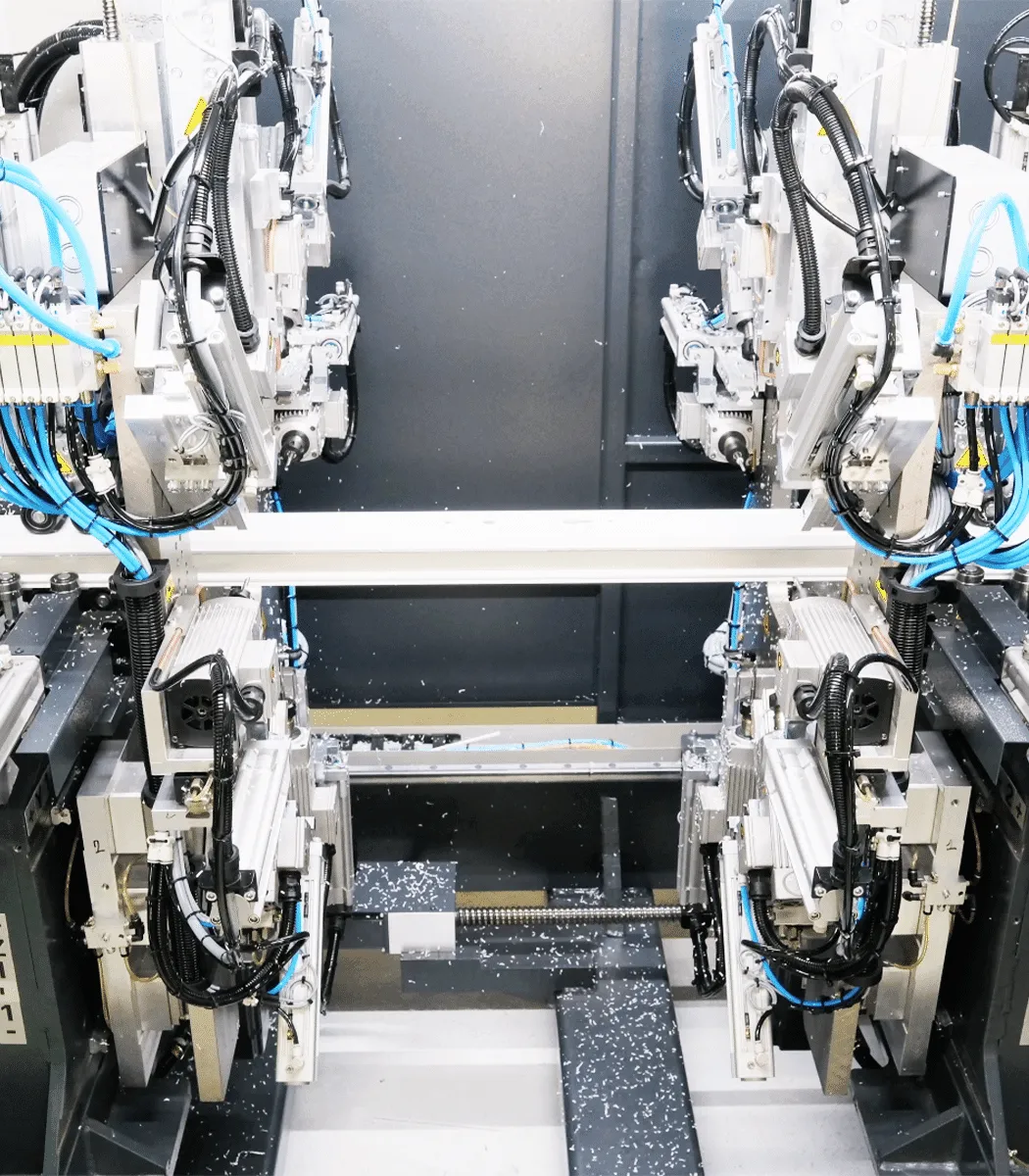

Saves time by simultaneously opening multiple holes on door profiles, such as door handles, slots by the axis control system on 2 separately router units.
With the processed profile, 11 pieces can be loaded on the machine. (Max. length 6.5 m)
Precision magnetic encoders used to minimize user errors and profile width and height, are checked and processed

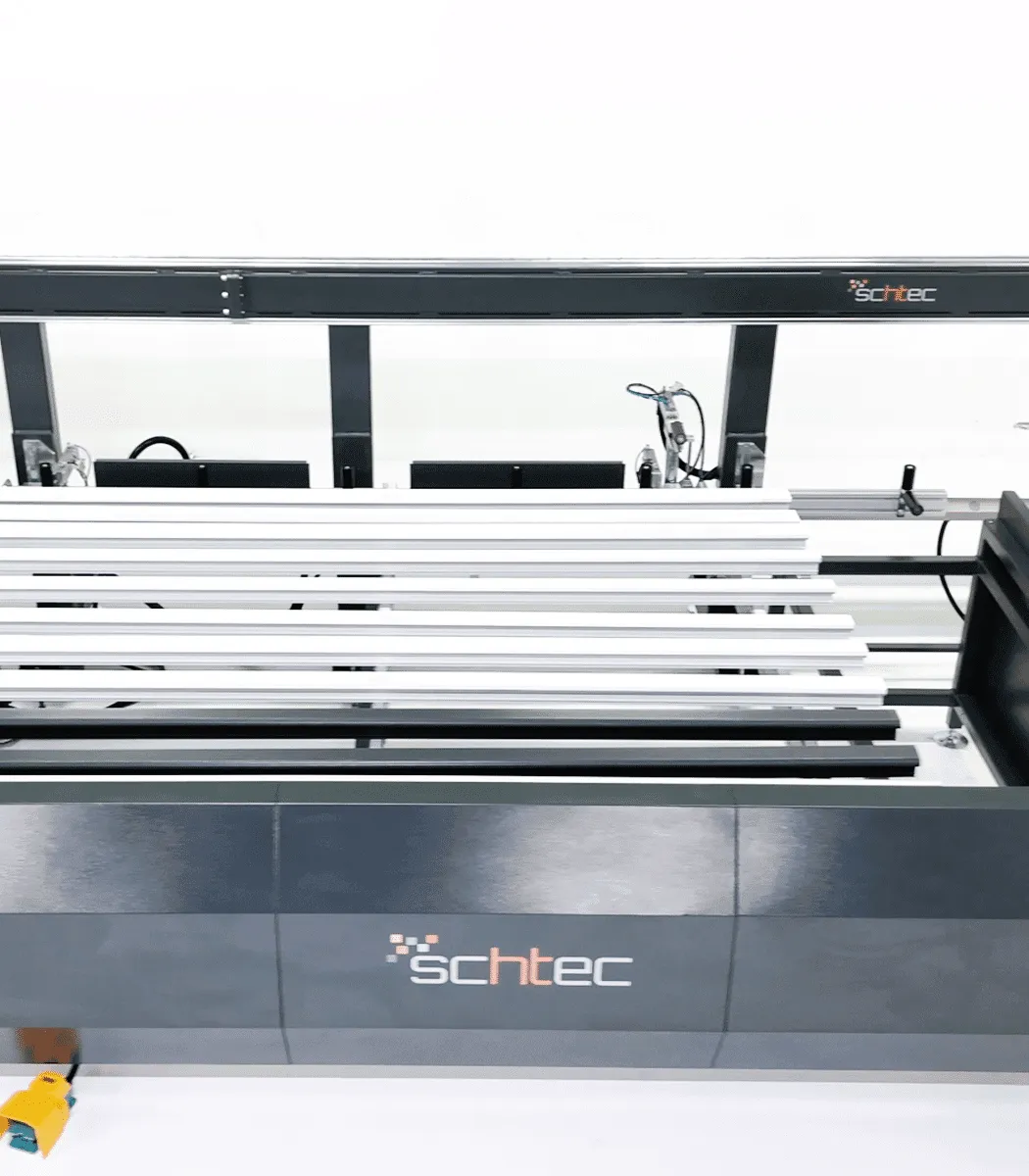

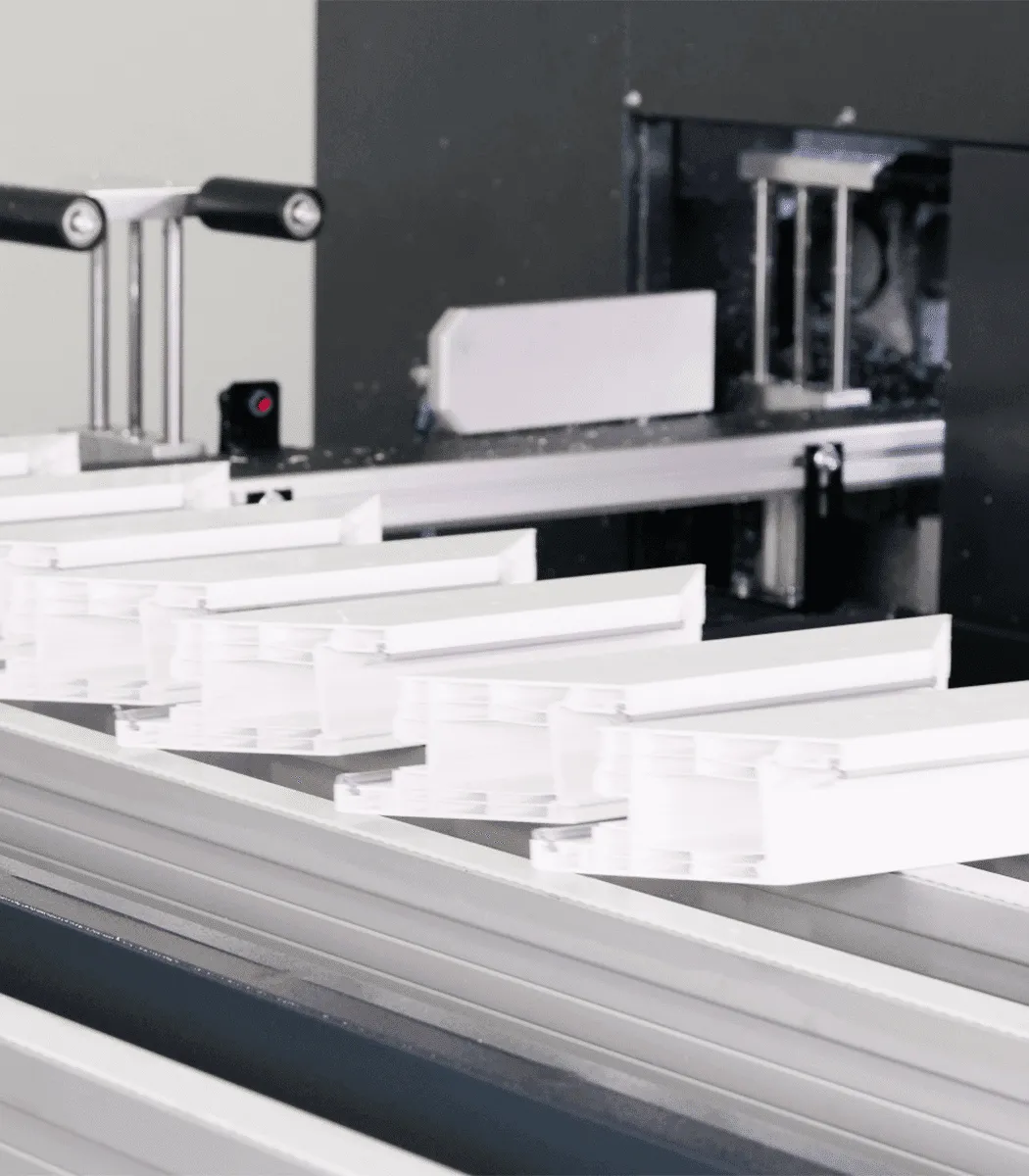

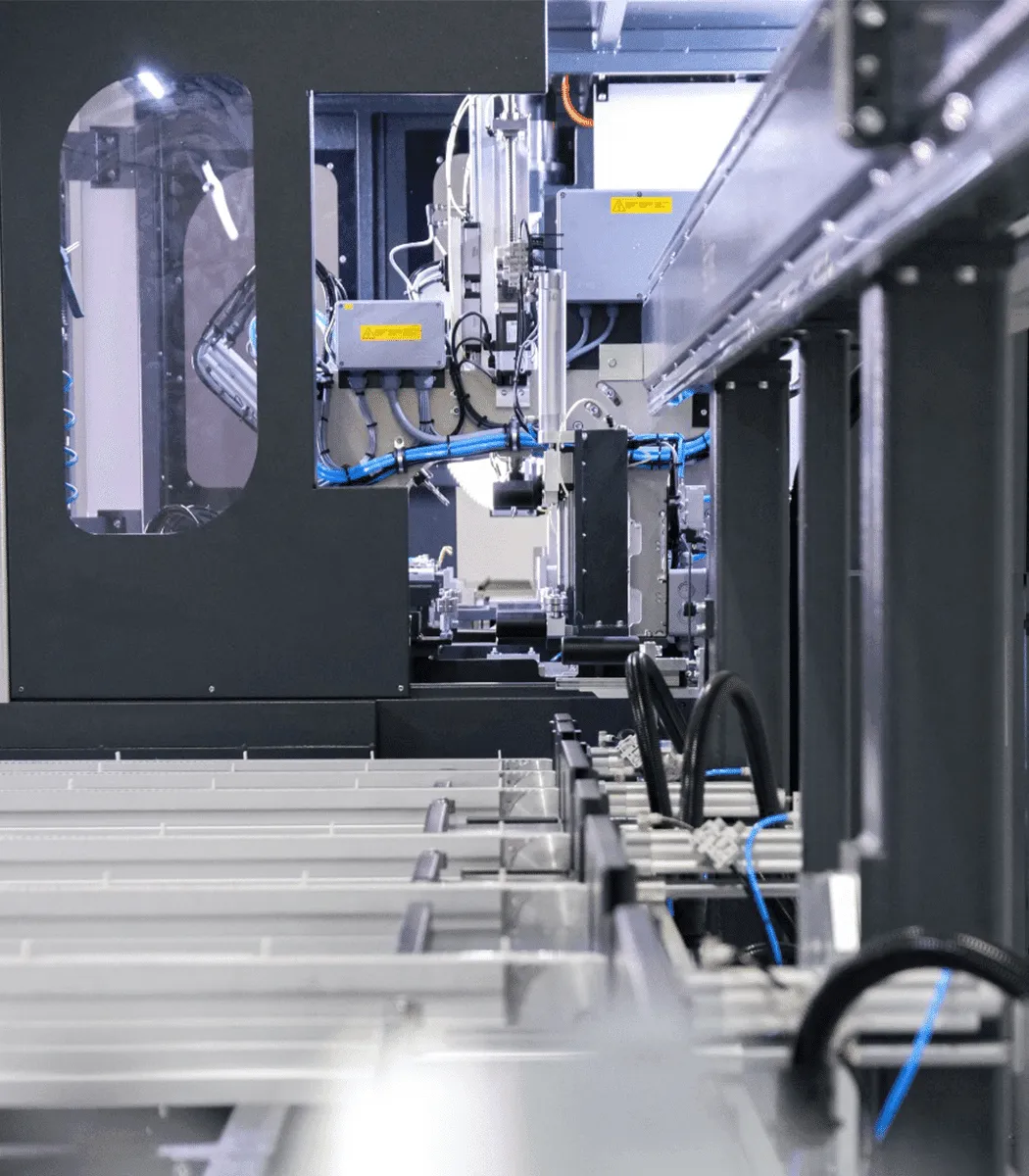

New design of loading station allow profiles to be loaded simultaneously. This feature saves time from loading process.
Private HMI software, developed by Schtec Software Department, allows different kinds of window design program data files to be uploaded on machine.
Simultaneous optimization on the machine allows the machine to optimize itself on the waste profiles
All alarms and machine faults are displayed on HMI along with solutions

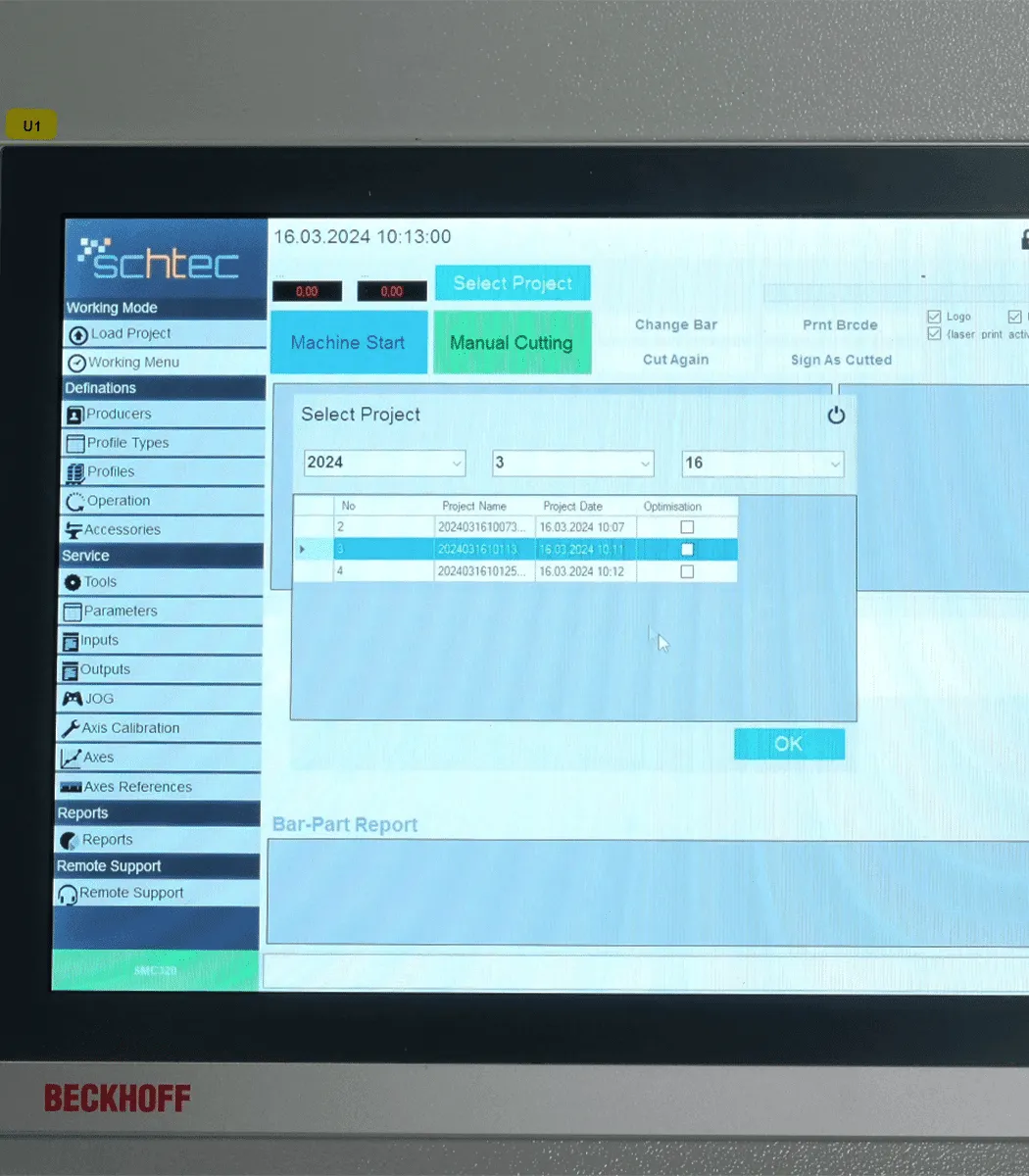

15” Touch Screen and high performance industrial PC with Windows 10 Embedded system. This system can operate fanless between 0°C and 55°C.
Industrial PC Based Servo Control System (Beckhoff)
Online diagnostic and troubleshooting via user friendly interface.
File transfer by USB or ethernet network and remote desktop connection by Wi-Fi or Ethernet connection
Central lubrication system reduces the time spent on maintenance
The automatic dust collection system efficiently extracts all PVC dust and quickly removes waste using two separate carriers

Optional Features

Optional screwing station, has two screw units, allows simultaneous screwing of reinforcement steel via servo controlled axes system. (RS 225)
For operations, which can be done on profiles with a height greater than 130 mm and maximum cutting height, please inquire to us.

Product Description

The SCHTEC SMC 360 is a high-capacity CNC system that automates the cutting, drilling, and milling of PVC and aluminum profiles in a single center. Featuring a 500 mm saw with 0.1° precision, a 14-tool milling unit, and 6.5 m machining length, it’s ideal for large-scale production. Its elevator-style loading system, touchscreen HMI interface, and energy-efficient motor ensure maximum speed and quality.

Frequently Asked Questions

Find quick answers to common questions about our Profile Processing & Cutting Centers for PVC Profiles

1. What is the main advantage of a Profile Processing & Cutting Center?

A Profile Processing & Cutting Center is a fully automated CNC machine that combines multiple operations into a single, continuous workflow. Instead of moving profiles between separate machines for cutting, milling, drilling, and screwing, these centers perform all processes in one integrated station. This drastically reduces production time, minimizes labor dependency, eliminates manual errors, and optimizes the factory floor space.

2. What specific operations can these centers perform on PVC profiles?

Schtec's CNC centers are highly versatile. They can perform all necessary operations on PVC profiles, including: cutting at any angle (e.g., between 30-150 degrees), milling water slots, drilling for handles and hinges, marking parts, and even automatic reinforcement screwing on advanced models. The CSML 240 and SMC 360 can be equipped with optional screwing units to create a complete, end-to-end processing solution.

3. How do Schtec machining centers achieve such high speed and precision?

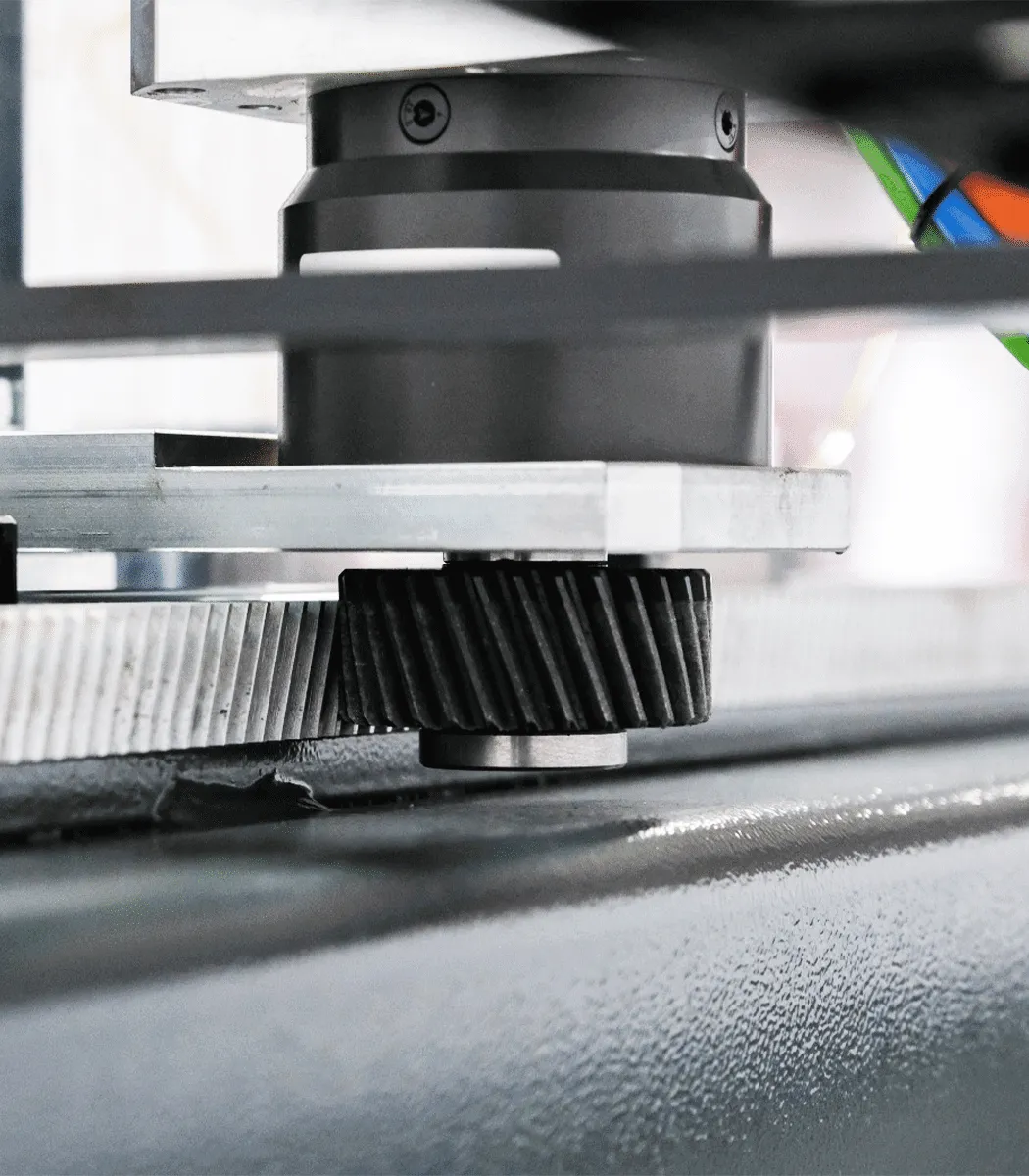

Our centers use a high-performance industrial PC-based control system (from our partner Beckhoff) that manages high-torque servo motors on all axes. This allows for positioning accuracy of up to 0.1 mm. The axes move on hardened steel rack-pinion and ball screw systems with central lubrication, ensuring smooth, repeatable, and accurate movement at high speeds for many years.

4. What is the benefit of a multi-profile infeed magazine?

The infeed magazine, or loading station, allows operators to load multiple raw PVC profiles (often 8 to 11 bars) at once. The machine then automatically feeds, processes, and cuts each profile according to the pre-loaded job list. This feature dramatically reduces idle time, minimizes operator dependency, and enables continuous, "lights-out" manufacturing, which is a massive boost to overall productivity. The SMC 320 and SMC 360 feature an elevator system to further reduce loading times.

5. How do these CNC centers integrate with our existing software?

To ensure seamless integration into a modern digital factory, our machining centers are designed to be fully compatible with all major window design programs. Job files can be transferred to the machine via Ethernet (network connection), Wi-Fi, or USB. The system can also be equipped with a barcode reader to instantly load the correct job for a specific profile, eliminating manual entry errors and ensuring maximum data accuracy from the office to the factory floor.

Voltage	400 V, 3 Ph, 50-60 Hz
Power Consumption	14 kW, 35 A
Max. Profile Height	130 mm (up to 170 mm for cutting only)
Min. Profile Height	40 mm
Max. Profile Width	130 mm
Min. Profile Width	35 mm
Max. Profile Bar Length	6,500 mm
Max. Process Length for Profile	6,000 mm
Maximum Cutting Length	3,500 mm (can be increased if needed)
Minimum Cutting Length	370 mm
Min. Process Length for Profile	900 mm
Tool Diameter	5 mm / 6 mm Carbide Fast Tool
Tool RPM	18,000 rpm
Max. Axes Speed (Processing)	50 m/min
Max. Axes Speed (Saw)	100 °/sec
Max. Axes Speed (Carrier)	40 m/min
Air Pressure	6-8 bar
Air Consumption	1,235 l/min
Machine Height	2,500 mm
Machine Length	16,850 mm
Machine Width	3,400 mm
Machine Weight	5,500 kg
Standard Tool Count	14 high-speed air-cooled spindles
