SG 100 + MA 270 + MD 272 Electronic Digital Measuring Device
SCHTEC SG 100, MA 270 & MD 272: Precise 45° PVC glazing bead cutting, 0.1 mm accuracy, WiFi data transfer, 3m capacity, ideal for small workshops.
SG 100 + MA 270 + MD 272 TECHNICAL SPECIFICATIONS
SG 100
| Power Supply | 400 V, 3 Ph, 50-60 Hz |
| Total Power Output | 1.5 kW (0.75 kW x 2), 3.75 A |
| Air Pressure | 6-8 bar |
| Air Consumption | 70 l/min |
| Spindle Speed | 3,000 rpm |
| Saw Blade Diameter | 200 mm x 2 / Ø100 mm x 2 |
| Max. Cutting Length | 3,000 mm |
| Min. Cutting Length | 230 mm |
| Machine Width | 1,210 mm |
| Machine Height | 1,040 mm |
| Machine Length | 550 mm (+ 4,775 mm manual conveyor system) |
| Machine Weight | 180 kg |
MA 270
| Power Supply | 230 V, 1 Ph, 50-60 Hz |
| Total Power | 6A NEMA34 Stepper Motor |
| Max. Profile Length | 3,300 mm |
| Machine Height | 1,400 mm – 1,500 mm (Adjustable) |
| Machine Width | 570 mm |
| Machine Length | 3,750 mm |
| Machine Weight | 192 kg |
Description
Standard Features
SG100

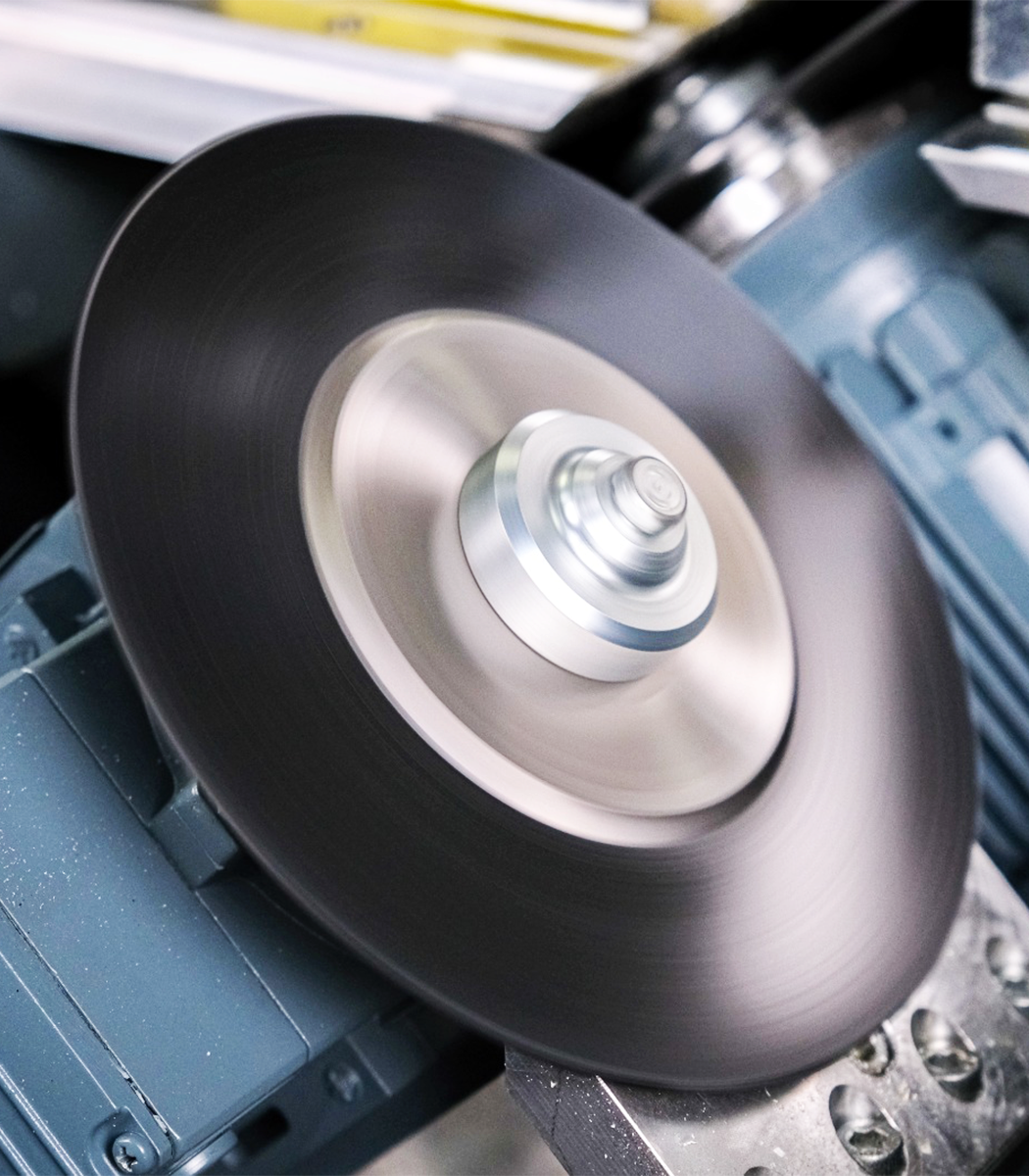

- High precision cutting of PVC glazing bead profiles at 45°
- Two glazing bead profiles can be cut at the same time with a specially designed mould
- Practical mould change system
- Adjustable blade speed
- Vertical pneumatic profile clampings system for high precision cutting
- Manual Measurement system and profile support conveyor are standard equipment of the machine
MA270
- 0,1mm precision cut capability with measurements entered via an WIFI connected ruler or via the operator panel
- Special mechanical design with stepper motor controlled and linear slide bearing system provides high speed resistance and accurate and fast positioning
- Operator panel with Industrial Windows CE operating system and PLC controller system
- Data transfer in CSV format via WIFI connection or USB Port directly.
- Parameters such as cutting length, number of cuts and item numbers can be edited and changed via the operator panel
- Unlimited number of cut-lists can be entered, and each cut-list can contain up to 1000 cuts.
- Can be used along with Glazing Bead Saw Machine, Single Head Machine and other similar applications
- Height adjustment can be done easily for the machine for which it will operate with.
MD272

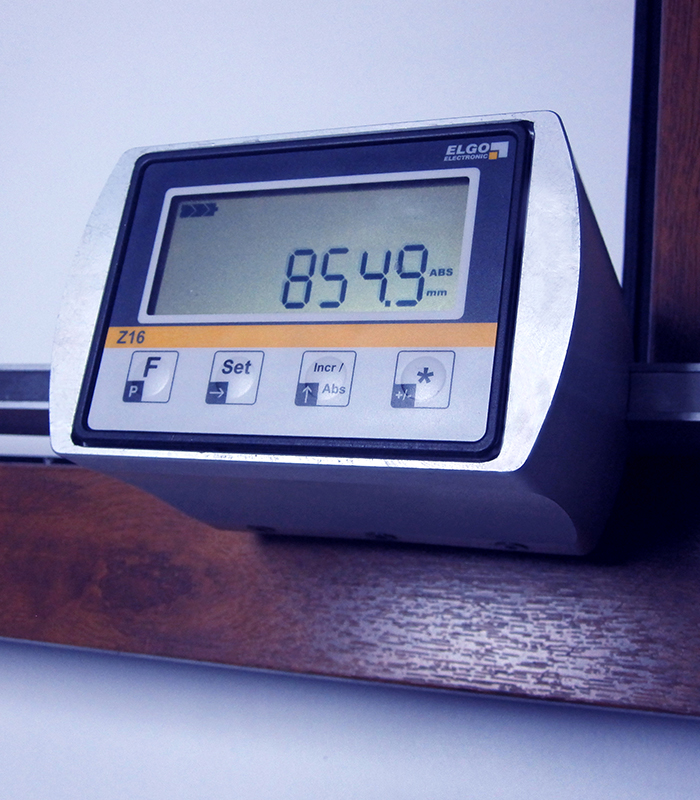

- Digital ruler with 0,1 mm accuracy for measuring glazing bead profiles
- Measures up to 2 m with its special design (3 m with the extension part)
- Measured data is transferred to the machine with WIFI and stored in the machine
- Measured data is cut in the order it is received, thus preventing any confusion, and the used data is marked on the machine
- The motions of the machine can be simulated visually through high-tech 16 million color TFT LCD operator
GC265 (Optional)
- Manual Measurement Conveyer for SG100 – SG110
Product Description
The SCHTEC SG 100, MA 270, and MD 272 combination enables fully automated processing of PVC glazing bead profiles at 45° angles with 0.1 mm precision. The SG 100 handles dual-profile operations, while the MA 270 features a WiFi-connected operator panel and stepper motor positioning. The MD 272 digital ruler offers 2–3 m measuring capacity and CSV data transfer for complete control. Its compact design, 1.5 kW motor, and user-friendly TFT LCD screen deliver high performance in small to medium-sized workshops.
